DP1FSF Straight Connector SAE Flange Code 62 (6000 PSI) – One Piece

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • FSConnection TypeSAE Flange Code 62 (6000 PSI)
  • FHose Fitting TypeOne Piece
  • DME&JDE Code: DP1FSF
  • Product Type: Hose Fittings
  • Hose Fitting Type: One Piece
  • Structure: Straight
  • Connection Type: Flange Code 62
Technical Data of DP1FSF
  • -12
  • -16
  • -20

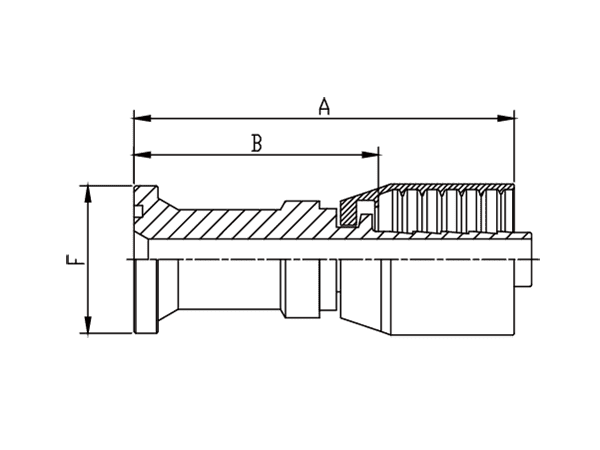

A drawing of DP1FSF one piece hose fitting of DME&JDE.
- PART NUMBER FLANGE Ø A B F
- - SIZE Inch mm mm mm
-01 DP1FSF-1212 3/4" 20.00 104.60 68.00 1-5/8"
-16 DP1FSF-1612 1" 25.00 78.70 42.20 1-7/8"
-16 DP1FSF-1616 1" 25.00 122.20 81.00 1-7/8"
-20 DP1FSF-2016 1-1/4" 32.00 91.70 50.50 2-1/8"
-20 DP1FSF-2020 1-1/4" 32.00 127.30 84.30 2-1/8"
