Location: Home Fluid Connector Hose Fittings One PieceDP9FSF

DP9FSF 90° Elbow SAE Flange Code 62 (6000 PSI) – One Piece

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
FSConnection TypeSAE Flange Code 62 (6000 PSI)
FHose Fitting TypeOne Piece

A drawing of DP9FSF hydraulic adaptor.

A 3D drawing of DP9FSF hydraulic adaptor.

A model drawing of DP9FSF hydraulic adaptor.

DME&JDE Code: DP9FSF
Product Type: Hose Fittings
Hose Fitting Type: One Piece
Structure: 90° Elbow
Connection Type: Flange Code 62

Technical Data of DP9FSF

-12
-16
-20

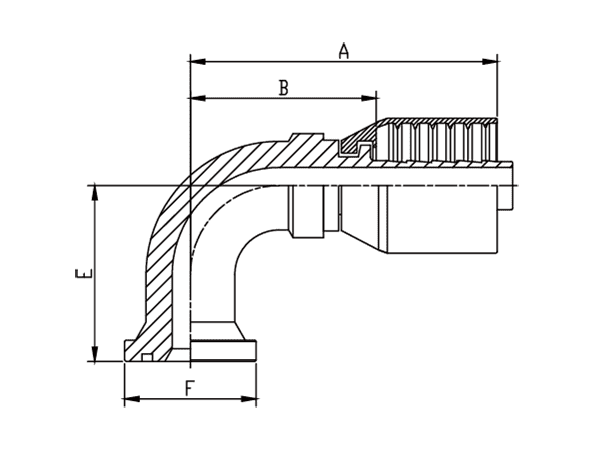

A drawing of DP9FSF one piece hose fitting of DME&JDE.

-	PART NUMBER	FLANGE	Ø	A	B	E	F
-	-	SIZE	Inch	mm	mm	mm	mm
-01	DP9FSF-1212	3/4"	3/4"	89.20	52.60	57.90	1-5/8"
-16	DP9FSF-1612	1"	3/4"	88.60	52.10	57.90	1-7/8"
-16	DP9FSF-1616	1"	1"	108.70	67.60	70.10	1-7/8"
-20	DP9FSF-2016	1 1/4"	1"	108.70	67.60	70.10	2-1/8"
-20	DP9FSF-2020	1 1/4"	1 1/4"	129.30	86.40	90.00	2-1/8"
