DP1ORMF Straight Connector ORFS Male Cone– One Piece

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • ORThread TypesORFS
  • MConnection TypeMale
  • FHose Fitting TypeOne-Piece
  • DME&JDE Code: DP1ORMF
  • Product Type: Hose Fittings
  • Hose Fitting Type: One Piece
  • Thread Types: UNF
  • Structure: Straight
  • Connection Type: Male
Technical Data of DP1ORMF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20

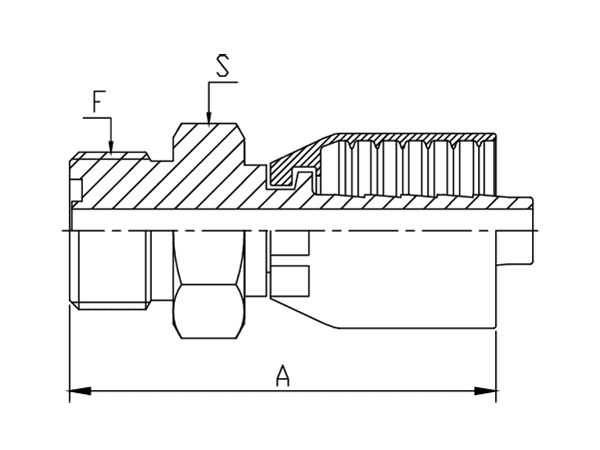

A drawing of DP1ORMF one piece hose fitting of DME&JDE.
- PART NUMBER F (Thread) Ø A S
- - UNF Inch mm mm
-01 DP1ORMF-0404 9/16"-18 1/4" 44 5/8"
-06 DP1ORMF-0606 11/16"-16 3/8" 53 3/4"
-08 DP1ORMF-0806 13/16"-16 3/8" 56 7/8"
-08 DP1ORMF-0808 13/16"-16 1/2" 61 7/8"
-10 DP1ORMF-1008 1"-14 1/2" 66 1-1/16"
-10 DP1ORMF-1010 1"-14 5/8" 69 1-1/16"
-12 DP1ORMF-1210 1-3/16"-12 5/8" 73 1-1/4"
-12 DP1ORMF-1212 1-3/16"-12 3/4" 74 1-1/4"
-16 DP1ORMF-1612 1-7/16"-12 3/4" 74 1-1/2"
-16 DP1ORMF-1616 1-7/16"-12 1" 84 1-1/2"
-20 DP1ORMF-2020 1-11/16"-12 1-1/4" 84 1-3/4"
