Location: Home Fluid Connector Hose Fittings FerruleDPFR13

DPFR13 Double Skive Ferrule for Heavy Duty Spiral Hose SAE R13/R15

DCompanyDME
PProduct RangeHose Fitting
FHose Fitting TypeFerrule
R13Available Hose TypeSAE R13/R15

A 3D drawing of DPFR13 hydraulic adaptor.

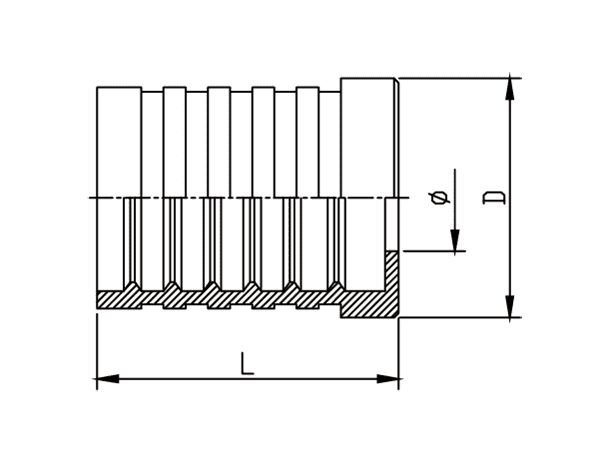

A model drawing of DPFR13 hydraulic adaptor.

DME&JDE Code: DPFR13
Product Type: Hose Fitting
Hose Fitting Type: Ferrule
Available Hose Type: SAE R13/R15

Technical Data of DPFR13

-10
-12
-16
-20
-24
-32

-	Part Number	Ø	D	L
-	-	Inch	mm	mm
-01	DPFR13-10	5/8"	36.00	43.50
-12	DPFR13-12	3/4"	40.00	53.00
-16	DPFR13-16	1"	49.00	66.00
-20	DPFR13-20	1-1/4"	60.00	88.50
-24	DPFR13-24	1-1/2"	69.30	102.00
-32	DPFR13-32	2"	86.50	108.00

Certificate

ISO 9001

ISO 14001

ISO 45001

MSHA

IATF

BV

DAkkS

SGS

GOST

DEKRA

DIN

SAE

MA

WSF
