DPF4T Skive Ferule For SAE100 R9 R12 4SP 4SH Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • FHose Fitting TypeFerrule
  • 4TAvailable Hose TypeSAE100 R9 R12 4SP 4SH
  • DME&JDE Code: DPF4T
  • Product Type: Hose Fitting
  • Hose Fitting Type: Ferrule
  • Available Hose Type: SAE100 R9 R12 4SP 4SH
Technical Data of DPF4T
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

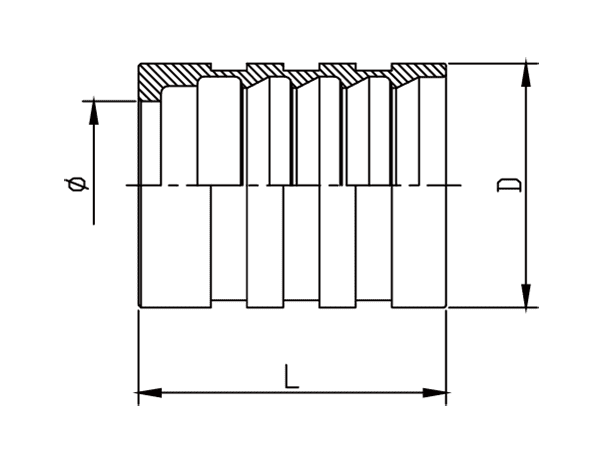

A drawing of DPF4T no-skive ferrule.
- Part Number Ø D L
- - Inch mm mm
-01 DPF4T-06 3/8" 25.50 33.50
-08 DPF4T-08 1/2" 30.00 37.00
-10 DPF4T-10 5/8" 34.00 40.00
-12 DPF4T-12 3/4" 37.40 40.00
-16 DPF4T-16 1" 46.00 60.00
-20 DPF4T-20 1-1/4" 56.00 66.00
-24 DPF4T-24 1-1/2" 65.00 76.50
-32 DPF4T-32 2" 80.00 80.00
