Location: HomeFluid ConnectorHose FittingsFerruleDPF04H

DPF04H Ferrule For 4SP、4SH/12-16、R12/06-16 Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • FHose Fitting TypeFerrule
  • 04HAvailable Hose Type4SP、4SH/12-16、R12/06-16
  • DME&JDE Code: DPF04H
  • Product Type: Hose Fitting
  • Hose Fitting Type: Ferrule
  • Available Hose Type: 4SP,4SH/12-16,R12/06-16
Technical Data of DPF04H
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

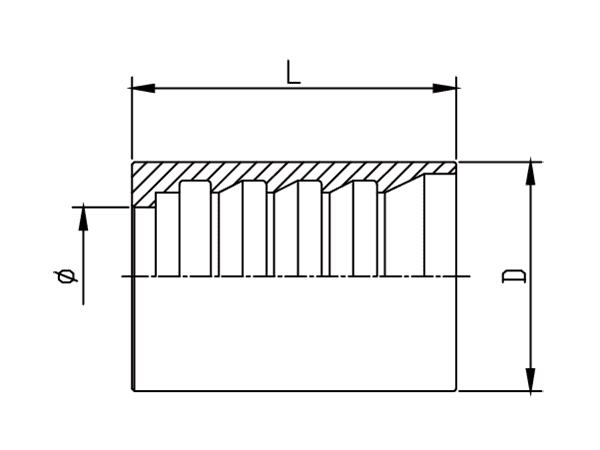

A drawing of DPF04H no-skive ferrule.
- Part Number Ø D L
- - Inch mm mm
-01 DPF04H-04 1/4" 22.00 37.50
-06 DPF04H-06 3/8" 26.00 39.00
-08 DPF04H-08 1/2" 29.00 41.00
-10 DPF04H-10 5/8" 33.00 43.00
-12 DPF04H-12 3/4" 38.00 51.00
-16 DPF04H-16 1" 46.50 61.50
-20 DPF04H-20 1-1/4" 56.00 67.50
-24 DPF04H-24 1-1/2" 64.00 75.00
-32 DPF04H-32 2" 78.00 79.00
