Location: Home Fluid Connector Hose Fittings FerruleDPF02SN

DPF02SN Ferrule For SAE100 R2AT/EN 853 2SN Hose

DCompanyDME
PProduct RangeHose Fitting
FHose Fitting TypeFerrule
02SNAvailable Hose TypeSAE100 R2AT/EN 853 2SN

A drawing of DPF02SN hydraulic adaptor.

A 3D drawing of DPF02SN hydraulic adaptor.

A model drawing of DPF02SN hydraulic adaptor.

DME&JDE Code: DPF02SN
Product Type: Hose Fitting
Hose Fitting Type: Ferrule
Available Hose Type: SAE100 R2AT/EN 853 2SN

Technical Data of DPF02SN

-04
-05
-06
-08
-10
-12
-16
-20
-24
-32

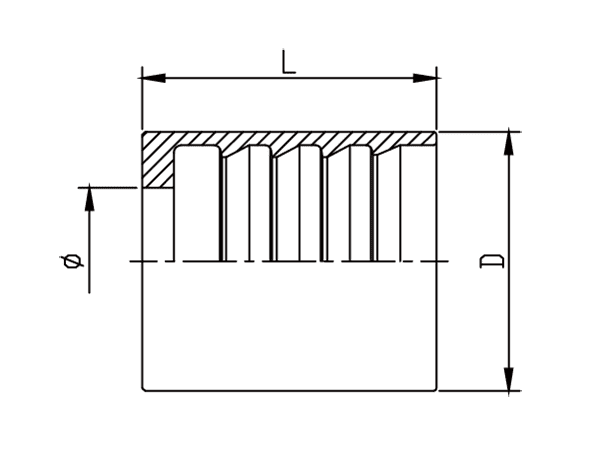

A drawing of DPF02SN no-skive ferrule.

-	Part Number	Ø	D	L
-	-	Inch	mm	mm
-01	DPF02SN-04	1/4"	6.00	30.00
-05	DPF02SN-05	5/16"	8.00	31.00
-06	DPF02SN-06	3/8"	10.00	32.00
-08	DPF02SN-08	1/2"	12.00	34.00
-10	DPF02SN-10	5/8"	16.00	37.00
-12	DPF02SN-12	3/4"	20.00	43.00
-16	DPF02SN-16	1"	25.00	50.00
-20	DPF02SN-20	1-1/4"	32.00	59.00
-24	DPF02SN-24	1-1/2"	40.00	74.00
-32	DPF02SN-32	2"	50.00	78.00
