Location: Home Fluid Connector Hose Fittings FerruleDPF1T

DPF1T No-Skive Ferrule for SAE100 R1AT or EN853 1SN/EN857 1SC

DCompanyDME
PProduct RangeHose Fitting
FHose Fitting TypeFerrule
1TAvailable Hose TypeSAE100 R1AT or EN853 1SN/EN857 1SC

A 3D drawing of DPF1T hydraulic adaptor.

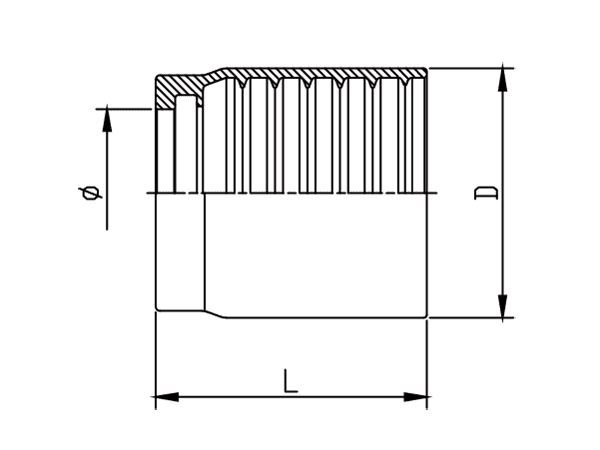

A model drawing of DPF1T hydraulic adaptor.

DME&JDE Code: DPF1T
Product Type: Hose Fitting
Hose Fitting Type: Ferrule
Available Hose Type: SAE100 R1AT or EN853 1SN/EN857 1SC

Technical Data of DPF1T

-03
-04
-05
-06
-08
-10
-12
-16

-	Part Number	Ø	D	L
-	-	Inch	mm	mm
-01	DPF1T-03	3/16"	17.50	24.50
-04	DPF1T-04	1/4"	21.00	30.00
-05	DPF1T-05	5/16"	21.50	30.00
-06	DPF1T-06	3/8"	24.30	32.00
-08	DPF1T-08	1/2"	28.00	34.00
-10	DPF1T-10	5/8"	31.30	37.00
-12	DPF1T-12	3/4"	35.50	42.00
-16	DPF1T-16	1"	43.50	51.00
