TP-DAOF51241-NPF Test Point ORFS Male - ORFS Swivel Female with NPTF Gage Port

  • TP Test Point
  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS
  • 5Connection TypeMale
  • 1Adaptor StructureStraight
  • 241Connection TypeORFS Swivel Female
  • NPFAccessoryNPTF Female Gage Port
  • DME&JDE Code: TP-DAOF51241-NPF
  • Product Type: hydraulic adaptor
  • Standard: Test Point Adaptor
  • Structure: Straight
  • Connection Type: Male × Swivel Female × Female
  • Thread Types: UNF × UNF × NPTF Gage Port
Technical Data of TP-DAOF51241-NPF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • >

* Filter the F1 Thread through selecting the -XX options

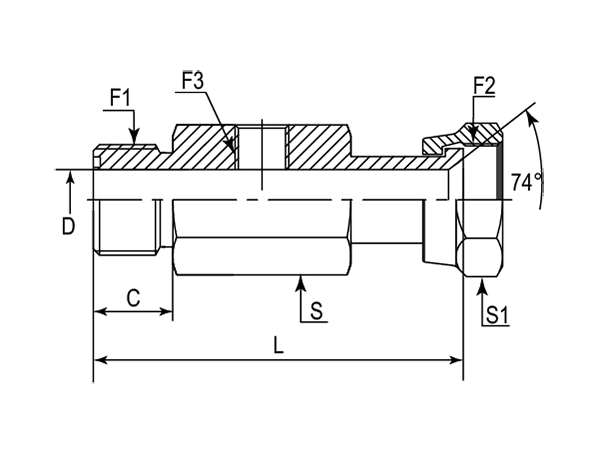

A drawing of TP-DAOF51241-NPF hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) F3 (Thread) C D L S S1
- - UNF UNF NPTF mm mm mm mm mm
-01 TP-DAOF51241-NPF-040404 9/16"-18 9/16"-18 1/4"-18 9.80 4.19 51.30 25.40 17.46
-06 TP-DAOF51241-NPF-060604 11/16"-16 11/16"-16 1/4"-18 11.20 6.71 54.90 25.40 20.62
-08 TP-DAOF51241-NPF-080804 13/16"-16 13/16"-16 1/4"-18 12.80 9.09 59.52 25.40 23.81
-10 TP-DAOF51241-NPF-101004 1"-14 1"-14 1/4"-18 15.49 11.51 65.40 27.00 28.58
-12 TP-DAOF51241-NPF-121204 1-3/16''-12 1-3/16''-12 1/4"-18 17.02 13.89 70.50 32.00 34.92
-16 TP-DAOF51241-NPF-161604 1-7/16''-12 1-7/16''-12 1/4"-18 17.50 19.89 73.00 41.27 41.28
