TP-DAJCM1251-UNF Test Point JIC Male 74°- JIC Swivel Female 74° with JIC Gage Port

  • TP-Test Point
  • DCompanyDME
  • AProduct RangeAdaptor
  • JCThread TypesJIC UNF
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 251Connection TypeJIC Swivel Female
  • UNFAccessoryUNF Gage Port
  • DME&JDE Code: TP-DAJCM1251-UNF
  • Product Type: Hydraulic Adaptors
  • Standard: Test Point Adaptor
  • Structure: Straight
  • Connection Type: Male × Swivel Female × Female
  • Thread Types: UNF × UNF × UNF Gage Port
Technical Data of TP-DAJCM1251-UNF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

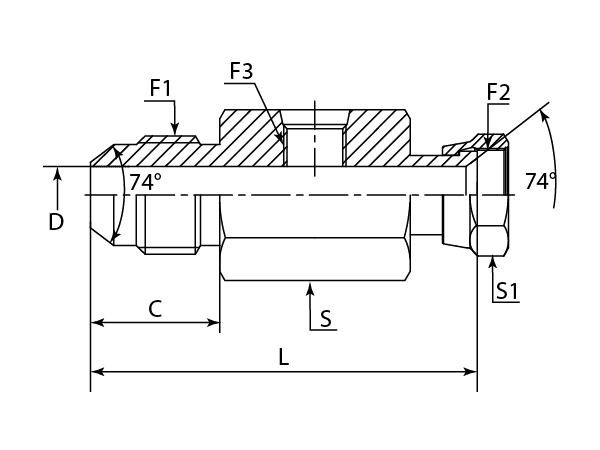

A drawing of TP-DAJCM1251-UNF hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) C1 C2 D L S S1
- - UNF UNF UNF mm mm mm mm mm mm
-01 TP-DAJCM1251-UNF-040404 7/16"-20 7/16"-20 7/16"-20 13.97 8.03 4.37 42.00 25.40 14.27
-06 TP-DAJCM1251-UNF-060604 9/16"-18 9/16"-18 7/16"-20 14.12 9.91 7.54 44.03 25.40 17.45
-08 TP-DAJCM1251-UNF-080804 3/4"-16 3/4"-16 7/16"-20 16.69 11.20 9.93 47.90 25.40 22.23
-10 TP-DAJCM1251-UNF-101004 7/8"-14 7/8"-14 7/16"-20 19.25 11.96 12.29 51.21 25.40 25.40
-12 TP-DAJCM1251-UNF-121204 1-1/16"-12 1-1/16"-12 7/16"-20 21.95 12.85 15.47 54.80 28.58 31.75
-16 TP-DAJCM1251-UNF-161604 1-5/16"-12 1-5/16"-12 7/16"-20 23.14 14.37 21.44 57.50 34.93 38.10
-20 TP-DAJCM1251-UNF-202004 1-5/8"-12 1-5/8"-12 7/16"-20 24.33 15.75 27.38 60.08 42.86 50.80
