Location: Home Fluid Connector Hydraulic Adaptors Test Point AdaptorTP-DAJCM1305-NPF

TP-DAJCM1305-NPF Test Point JIC Male - JIC Male + O Ring with NPTF Gage Port

TP Test Point
DCompanyDME
AProduct RangeAdaptor
JCThread TypesJIC
MConnection TypeMale
1Adaptor StructureStraight
30Thread TypesJIC
5Connection TypeMale + O Ring
NPFAccessoryNPTF Female Gage Port

A drawing of TP-DAJCM1305-NPF hydraulic adaptor.

A 3D drawing of TP-DAJCM1305-NPF hydraulic adaptor.

A model drawing of TP-DAJCM1305-NPF hydraulic adaptor.

DME&JDE Code: TP-DAJCM1305-NPF
Product Type: hydraulic adaptor
Standard: Test Point Adaptor
Structure: Straight
Connection Type: Male × Male × Female
Thread Types: UNF × UNF + O Ring × NPTF Gage Port
Sealing Method: O Rings

Technical Data of TP-DAJCM1305-NPF

-08
-12

* Filter the F1 Thread through selecting the -XX options

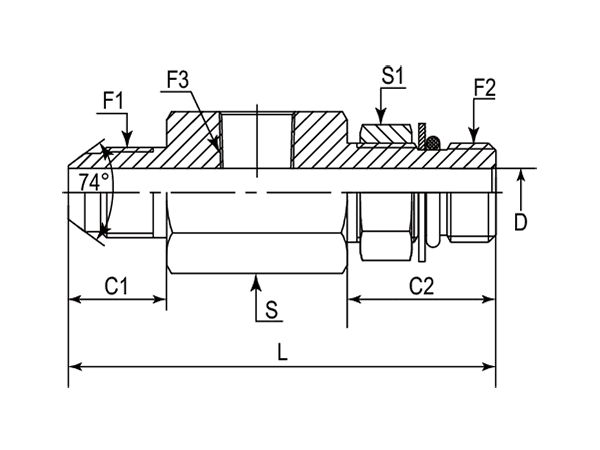

A drawing of TP-DAJCM1305-NPF hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	C1	C2	D	L	S	S1
-	-	UNF	UNF	NPTF	mm	mm	mm	mm	mm	mm
-01	TP-DAJCM1305-NPF-080804	3/4"-16	3/4"-16	1/4"-18	18.69	24.22	9.93	79.40	22.22	22.22
-12	TP-DAJCM1305-NPF-121204	1-1/16''-12	1-1/16''-12	1/4"-18	24.74	32.17	15.47	91.90	26.97	31.75
