* Filter the F1 Thread through selecting the -XX options

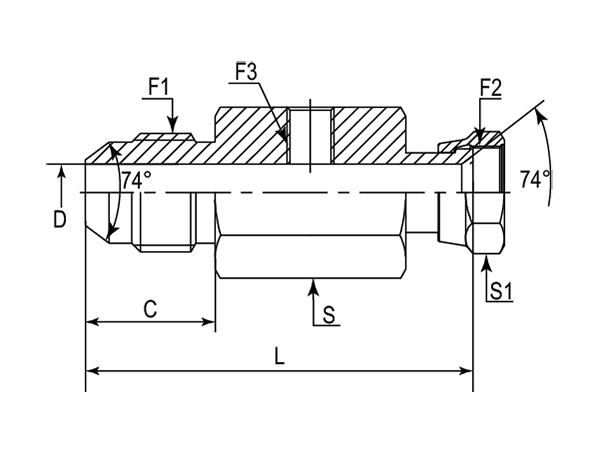

| - | Part Number | F1 (Thread) | F2 (Thread) | F3 (Thread) | C | D | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | BSPP | mm | mm | mm | mm | mm |
| -01 | TP-DAJCM1251-BPF-040402 | 7/16"-20 | 7/16"-20 | 1/8"-28 | 13.97 | 4.37 | 42.00 | 1" | 9/16" |
| -05 | TP-DAJCM1251-BPF-050502 | 1/2"-20 | 1/2"-20 | 1/8"-28 | 13.97 | 5.94 | 42.90 | 1" | 5/8" |
| -06 | TP-DAJCM1251-BPF-060602 | 9/16"-18 | 9/16"-18 | 1/8"-28 | 14.12 | 7.54 | 44.00 | 1" | 11/16" |
| -08 | TP-DAJCM1251-BPF-080802 | 3/4"-16 | 3/4"-16 | 1/8"-28 | 16.69 | 9.93 | 48.00 | 1" | 7/8" |
| -10 | TP-DAJCM1251-BPF-101002 | 7/8"-14 | 7/8"-14 | 1/8"-28 | 19.25 | 12.29 | 51.50 | 1" | 1" |
| -12 | TP-DAJCM1251-BPF-121202 | 1-1/16''-12 | 1-1/16''-12 | 1/8"-28 | 21.95 | 15.47 | 55.00 | 1-1/8" | 1-1/4" |
| -14 | TP-DAJCM1251-BPF-141402 | 1-3/16''-12 | 1-3/16''-12 | 1/8"-28 | 23.00 | 18.00 | 56.60 | 1-1/4" | 1-3/8" |
| -16 | TP-DAJCM1251-BPF-161602 | 1-5/16''-12 | 1-5/16''-12 | 1/8"-28 | 23.14 | 21.44 | 57.50 | 1-3/8" | 1-1/2" |
| -20 | TP-DAJCM1251-BPF-202002 | 1-5/8''-12 | 1-5/8''-12 | 1/8"-28 | 24.33 | 27.38 | 60.00 | 1-11/16" | 2" |
