Location: Home Fluid Connector Hydraulic Adaptors Test Point AdaptorTP-DAOF51241-BPF

TP-DAOF51241-BPF Test Point ORFS Male - ORFS Swivel Female with BSP Gage Port

TP Test Point
DCompanyDME
AProduct RangeAdaptor
OFThread TypesORFS
5Connection TypeMale
1Adaptor StructureStraight
241Connection TypeORFS Swivel Female
BPFAccessoryBSP Female Gage Port

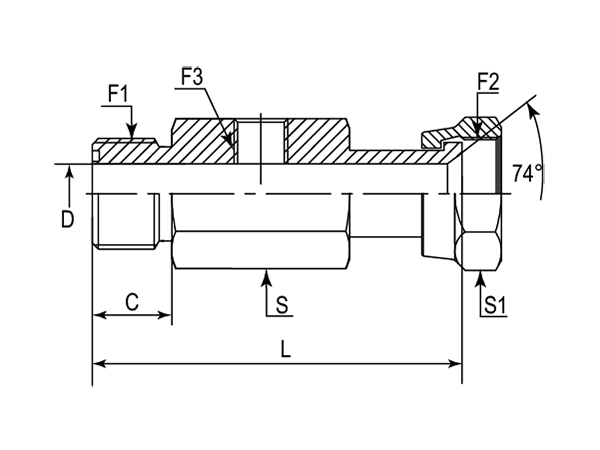

A drawing of TP-DAOF51241-BPF hydraulic adaptor.

A 3D drawing of TP-DAOF51241-BPF hydraulic adaptor.

A model drawing of TP-DAOF51241-BPF hydraulic adaptor.

DME&JDE Code: TP-DAOF51241-BPF
Product Type: hydraulic adaptor
Standard: Test Point Adaptor
Structure: Straight
Connection Type: Male × Swivel Female × Female
Thread Types: UNF × UNF × BSPP Gage Port

Technical Data of TP-DAOF51241-BPF

-04
-06
-08
-10
-12
-14
-16
-20

* Filter the F1 Thread through selecting the -XX options

A drawing of TP-DAOF51241-BPF hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	C	D	L	S	S1
-	-	UNF	UNF	BSPP	mm	mm	mm	mm	mm
-01	TP-DAOF51241-BPF-040402	9/16"-18	9/16"-18	1/8"-28	9.80	4.19	46.50	1"	11/16"
-06	TP-DAOF51241-BPF-060602	11/16"-16	11/16"-16	1/8"-28	11.20	6.71	50.00	1"	13/16"
-08	TP-DAOF51241-BPF-080802	13/16"-16	13/16"-16	1/8"-28	12.80	9.09	54.50	1"	15/16"
-10	TP-DAOF51241-BPF-101002	1"-14	1"-14	1/8"-28	15.49	11.51	60.50	1-1/16"	1-1/8"
-12	TP-DAOF51241-BPF-121202	1-3/16"-12	1-3/16"-12	1/8"-28	17.02	13.89	65.50	1-1/4"	1-3/8"
-16	TP-DAOF51241-BPF-161602	1-7/16"-12	1-7/16"-12	1/8"-28	17.50	19.89	70.00	1-1/2"	1-5/8"
-20	TP-DAOF51241-BPF-202002	1-11/16"-12	1-11/16"-12	1/8"-28	17.50	26.00	70.00	1-7/8"	1-7/8"
