TP-DAJSM1071-BPF Test Point Metric Male - Metric Swivel Female with BSP Gage Port BSP

  • TP Test Point
  • DCompanyDME
  • AProduct RangeAdaptor
  • JSThread TypesJIS Metric
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 071Connection TypeMetric Swivel Female
  • BPFAccessoryBSP Female Gage Port
  • DME&JDE Code: TP-DAJSM1071-BPF
  • Product Type: hydraulic adaptor
  • Standard: Test Point
  • Structure: Straight
  • Connection Type: Male × Swivel Female × Female
  • Thread Types: Metric × Metric × BSPP Gage Port
Technical Data of TP-DAJSM1071-BPF
  • -14
  • -18
  • -22
  • -24
  • -26
  • -30

* Filter the F1 Thread through selecting the -XX options

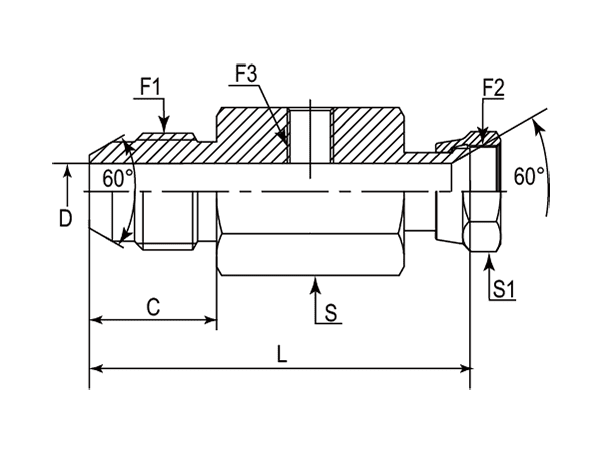

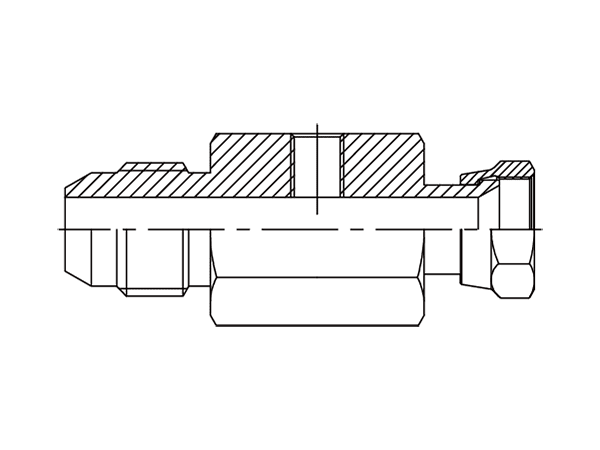

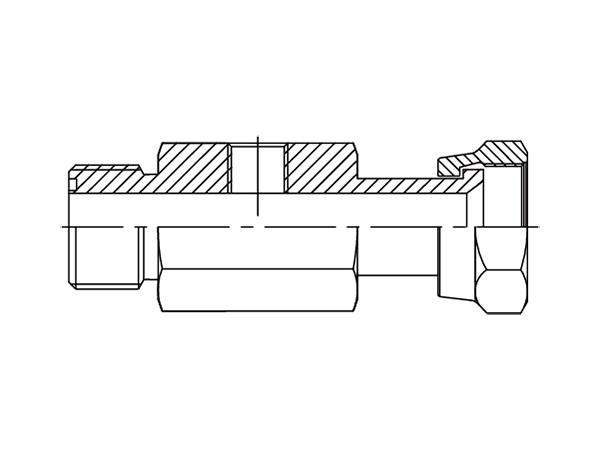

A drawing of TP-DAJSM1071-BPF hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) F3 (Thread) C D L S S1
- - Metric Metric BSPP mm mm mm mm mm
-01 TP-DAJSM1071-BPF-141402 M14X1.5 M14X1.5 1/8"-28 17.00 4.00 46.50 25.40 19.00
-18 TP-DAJSM1071-BPF-181802 M18X1.5 M18X1.5 1/8"-28 18.00 7.00 49.50 25.40 24.00
-22 TP-DAJSM1071-BPF-222202 M22X1.5 M22X1.5 1/8"-28 20.00 9.50 51.50 25.40 27.00
-24 TP-DAJSM1071-BPF-242402 M24X1.5 M24X1.5 1/8"-28 21.50 12.50 53.50 27.00 32.00
-26 TP-DAJSM1071-BPF-262602 M26X1.5 M26X1.5 1/8"-28 22.00 13.00 54.50 30.00 32.00
-30 TP-DAJSM1071-BPF-303002 M30X1.5 M30X1.5 1/8"-28 26.00 14.00 59.50 33.00 36.00
