Location: Home Fluid Connector Hose Fittings Push-OnDP9JCF-PO

DP9JCF-PO 90° Elbow JIC Swivel Female 74° Cone – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
JCThread TypesJIC UNF
FConnection TypeSwivel Female
POHose Fitting TypePush On Tail

A drawing of DP9JCF-PO hydraulic adaptor.

A 3D drawing of DP9JCF-PO hydraulic adaptor.

A model drawing of DP9JCF-PO hydraulic adaptor.

DME&JDE Code: DP9JCF-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Thread Type: JIC UNF 74° Cone
Structure: 90° Elbow
Connection Type: Swivel Female

Technical Data of DP9JCF-PO

-04
-05
-06
-08
-10
-12

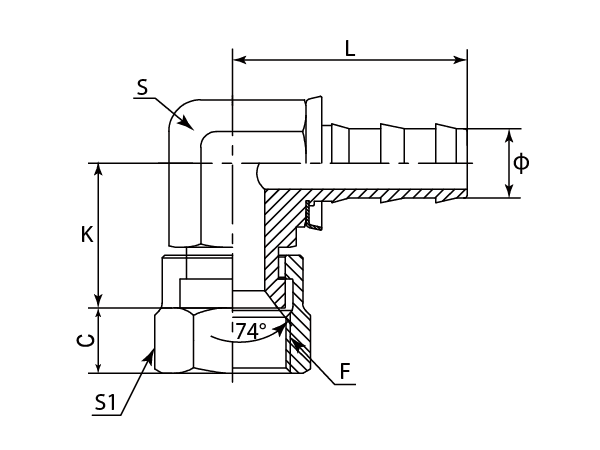

A drawing of DP9JCF-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	C	K	L	S	S1
-	-	UNF	Inch	mm	mm	mm	mm	mm
-01	DP9JCF-0404PO	7/16"-20	6.70	9.00	18.00	32.10	11.00	17.00
-05	DP9JCF-0504PO	1/2"-20	6.70	8.38	17.50	34.60	14.00	15.88
-06	DP9JCF-0606PO	9/16"-18	9.90	10.50	22.22	40.00	14.27	19.00
-08	DP9JCF-0808PO	3/4"-16	13.20	10.50	24.33	44.70	19.05	24.00
-10	DP9JCF-1008PO	7/8"-14	13.20	12.50	27.50	46.20	22.00	27.00
-10	DP9JCF-1010PO	7/8"-14	16.25	12.50	27.50	56.60	22.00	27.00
-12	DP9JCF-1212PO	1-1/16"-12	19.50	16.00	30.00	59.50	27.00	32.00
