Location: Home Fluid Connector Hose Fittings Push-OnDP1BTM-PO

DP1BTM-PO Straight BSPT Male 60° Cone – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
BTThread TypesBSPT
MConnection TypeMale
POHose Fitting TypePush On Tail

A drawing of DP1BTM-PO hydraulic adaptor.

A 3D drawing of DP1BTM-PO hydraulic adaptor.

A model drawing of DP1BTM-PO hydraulic adaptor.

DME&JDE Code: DP1BTM-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Thread Type: BSPT 60° Cone
Structure: Straight
Connection Type: Male

Technical Data of DP1BTM-PO

-02
-04
-06
-08
-12
-16

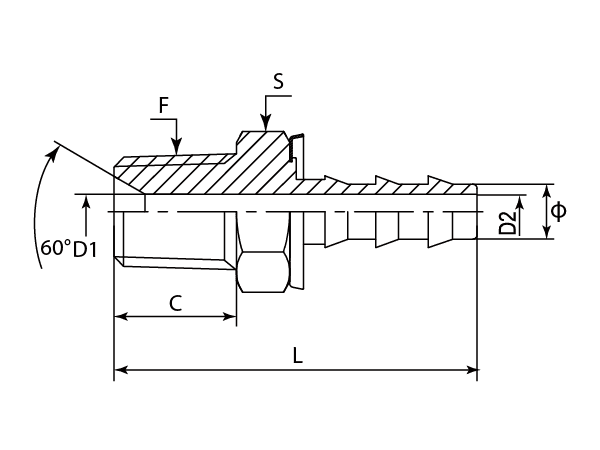

A drawing of DP1BTM-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	C	D1	D2	L	S
-	-	BSPT	Inch	mm	mm	mm	mm	mm
-01	DP1BTM-0204PO	1/8"-28	6.70	10.50	4.30	4.30	38.40	12.00
-04	DP1BTM-0404PO	1/4"-19	6.70	15.00	4.30	4.30	44.40	17.00
-06	DP1BTM-0606PO	3/8"-19	9.90	16.00	7.50	7.50	51.90	19.00
-06	DP1BTM-0608PO	3/8"-19	13.20	16.00	9.90	9.90	53.60	19.00
-08	DP1BTM-0806PO	1/2"-14	9.90	19.50	7.50	7.50	55.90	22.00
-08	DP1BTM-0808PO	1/2"-14	13.20	19.50	9.90	9.90	57.60	22.00
-12	DP1BTM-1210PO	3/4"-14	16.25	19.50	15.00	12.40	71.30	27.00
-12	DP1BTM-1212PO	3/4"-14	19.50	19.50	15.40	15.40	71.70	27.00
-16	DP1BTM-1616PO	1"-11	25.60	25.50	20.80	20.80	87.30	36.00
