DDC-PO Push On Hose Joiner

  • DCompanyDME
  • DCConnection TypeHose Joiner
  • POHose Fitting TypePush On Tail
  • DME&JDE Code: DDC-PO
  • Product Type: Hose Fittings
  • Hose Fitting Type: Push-On
Technical Data of DDC-PO
  • -04
  • -06
  • -08
  • -10
  • -12

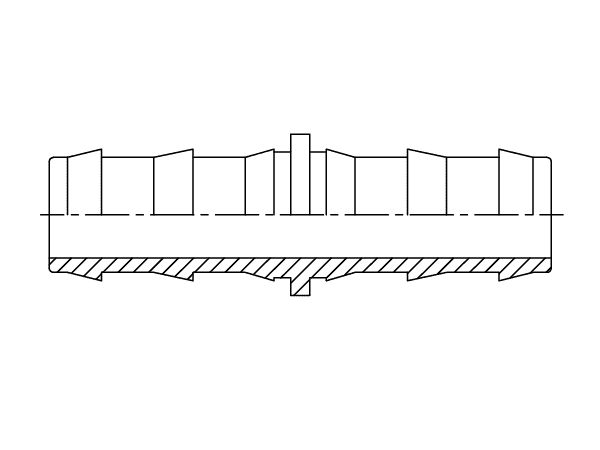

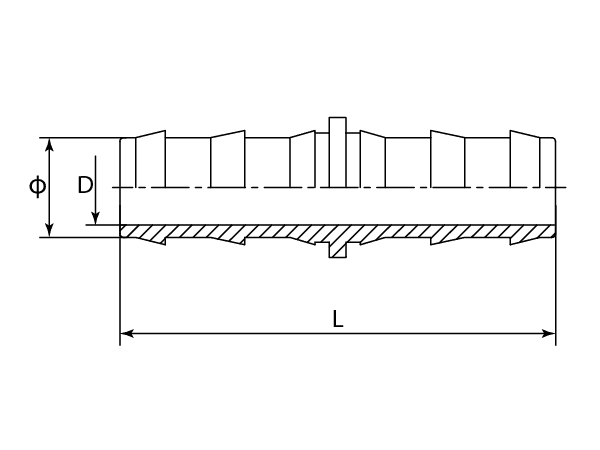

A drawing of DDC-PO push on tail of DME&JDE.
- PART NUMBER Ø D L
- - Inch mm mm
-01 DDC-04PO 6.70 4.30 43.30
-06 DDC-06PO 9.90 7.50 53.70
-08 DDC-08PO 13.20 9.90 57.60
-10 DDC-10PO 16.25 12.40 80.20
-12 DDC-12PO 19.50 15.40 79.00
