Location: Home Fluid Connector Hose Fittings Push-OnDP9BPF-PO

DP9BPF-PO 90° Elbow BSPP Swivel Female 60° – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
BPThread TypesBSPP
FConnection TypeSwivel Female
POHose Fitting TypePush On Tail

A drawing of DP9BPF-PO hydraulic adaptor.

A 3D drawing of DP9BPF-PO hydraulic adaptor.

A model drawing of DP9BPF-PO hydraulic adaptor.

DME&JDE Code: DP9BPF-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Thread Type: BSPP 60°
Structure: 90° Elbow
Connection Type: Swivel Female

Technical Data of DP9BPF-PO

-04
-06
-08
-12

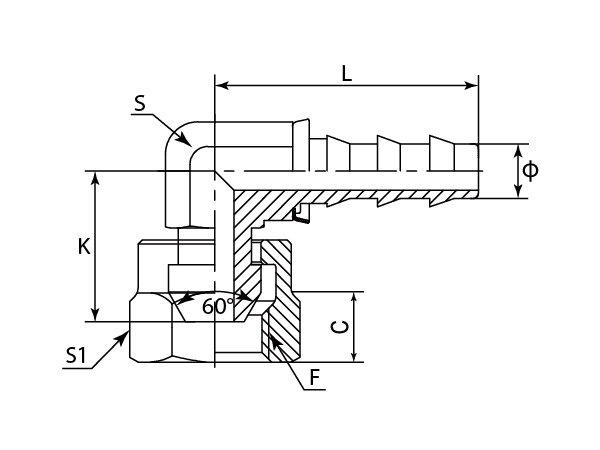

A drawing of DP9BPF-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	C	K	L	S	S1
-	-	BSPP	Inch	mm	mm	mm	mm	mm
-01	DP9BPF-0404PO	1/4"-19	6.70	8.50	18.50	32.40	11.00	19.00
-06	DP9BPF-0606PO	3/8"-19	9.90	9.00	28.20	38.50	19.00	22.00
-08	DP9BPF-0808PO	1/2"-14	13.20	11.00	26.50	44.70	19.00	27.00
-12	DP9BPF-1212PO	3/4"-14	19.50	14.50	37.90	59.50	27.00	32.00
