Location: Home Fluid Connector Hose Fittings Push-OnDP1BPF-PO

DP1BPF-PO Straight BSPP Swivel Female 60° – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
BPThread TypesBSPP
FConnection TypeSwivel Female
POHose Fitting TypePush On Tail

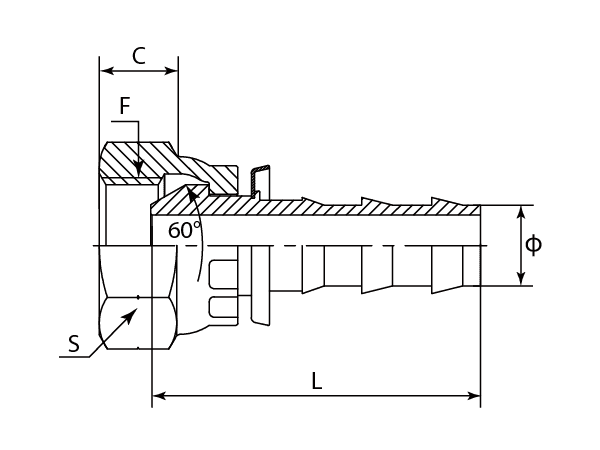

A drawing of DP1BPF-PO hydraulic adaptor.

A 3D drawing of DP1BPF-PO hydraulic adaptor.

A model drawing of DP1BPF-PO hydraulic adaptor.

DME&JDE Code: DP1BPF-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Thread Type: BSPP 60°
Structure: Straight
Connection Type: Swivel Female

Technical Data of DP1BPF-PO

-04
-06
-08
-10
-12
-16

A drawing of DP1BPF-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	C	L	S
-	-	BSPP	Inch	mm	mm	mm
-01	DP1BPF-0404PO	1/4"-19	6.70	8.50	33.90	19.00
-04	DP1BPF-0406PO	1/4"-19	9.90	8.50	39.20	19.00
-06	DP1BPF-0606PO	3/8"-19	9.90	9.00	40.70	22.00
-06	DP1BPF-0608PO	3/8"-19	13.20	9.00	43.40	22.00
-08	DP1BPF-0806PO	1/2"-14	9.90	11.00	41.70	27.00
-08	DP1BPF-0808PO	1/2"-14	13.20	11.00	44.40	27.00
-08	DP1BPF-0810PO	1/2"-14	16.25	11.00	54.80	27.00
-10	DP1BPF-1010PO	5/8"-14	16.25	13.50	55.30	30.00
-12	DP1BPF-1212PO	3/4"-14	19.50	14.50	56.00	32.00
-16	DP1BPF-1616PO	1"-11	25.60	15.50	69.80	41.00
