Location: Home Fluid Connector Hose Fittings Push-OnDP1NPM-PO

DP1NPM-PO Straight NPTF Male 60° – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
NPThread TypesNPTF
MConnection TypeMale
POHose Fitting TypePush On Tail

A drawing of DP1NPM-PO hydraulic adaptor.

A 3D drawing of DP1NPM-PO hydraulic adaptor.

A model drawing of DP1NPM-PO hydraulic adaptor.

DME&JDE Code: DP1NPM-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Thread Type: NPTF 60° Cone
Structure: Straight
Connection Type: Male

Technical Data of DP1NPM-PO

-02
-04
-06
-08
-12
-16

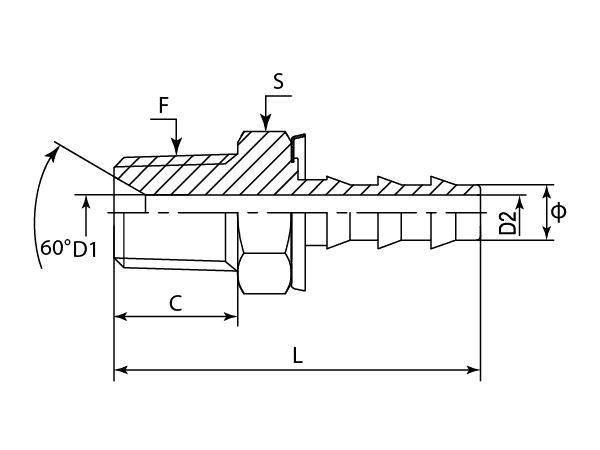

A drawing of DP1NPM-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	C	D1	D2	L	S
-	-	NPTF	Inch	mm	mm	mm	mm	mm
-01	DP1NPM-0204PO	1/8"-27	6.70	10.50	4.30	4.30	38.40	12.00
-04	DP1NPM-0404PO	1/4"-18	6.70	15.00	4.30	4.30	44.40	17.00
-06	DP1NPM-0606PO	3/8"-18	9.90	16.00	7.50	7.50	51.90	19.00
-06	DP1NPM-0608PO	3/8"-18	13.20	16.00	9.90	9.90	53.60	19.00
-08	DP1NPM-0806PO	1/2"-14	9.90	19.50	7.50	7.50	55.90	22.00
-08	DP1NPM-0808PO	1/2"-14	13.20	19.50	9.90	9.90	57.60	22.00
-12	DP1NPM-1210PO	3/4"-14	16.25	19.50	15.00	12.40	71.30	27.00
-12	DP1NPM-1212PO	3/4"-14	19.50	19.50	15.40	15.40	71.70	27.00
-16	DP1NPM-1616PO	1"-11-1/2	25.60	25.50	20.80	20.80	87.30	36.00
