Location: Home Fluid Connector Hose Fittings ReusableDP9BPF-RU

DP9BPF-RU 90° Swept Elbows BSPP Swivel Female 60° – Reusable Tail for R1/R2/R5

DCompanyDME
PProduct RangeHose Fitting
4Fitting Structure45° Elbow
BPThread TypesBSPP
FConnection TypeSwivel Female
RUHose Fitting TypeReusable

A drawing of DP9BPF-RU hydraulic adaptor.

A 3D drawing of DP9BPF-RU hydraulic adaptor.

A model drawing of DP9BPF-RU hydraulic adaptor.

DME&JDE Code: DP9BPF-RU
Product Type: Hose Fitting
Hose Fitting Type: Reusable
Available Hoses: 100 R1, 100 R2 or 100 R5
Thread Type: BSPP 60° Cone × UNF
Structure: 90° Swept Elbows
Connection Type: Swivel Female

Technical Data of DP9BPF-RU

-04
-06
-08
-12
-16

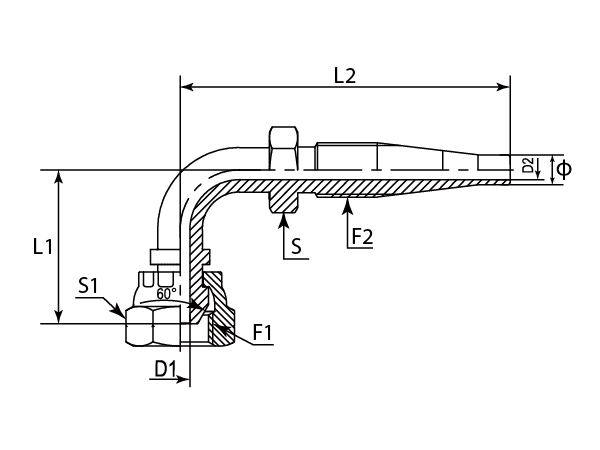

A drawing of DP9BPF-RU reusable hose fitting of DME&JDE.

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	Ø	L1	L2	S	S1
-	-	BSPP	UNF	mm	mm	mm	mm	mm	mm	mm
-01	DP9BPF-RU-0404	1/4"-19	7/16"-20	4.00	4.00	6.00	30.00	76.00	15	19
-06	DP9BPF-RU-0606	3/8"-19	9/16"-18	7.00	7.00	8.80	43.00	82.50	19	22
-08	DP9BPF-RU-0808	1/2"-14	5/8"-18	9.30	9.30	11.50	51.00	92.00	24	27
-12	DP9BPF-RU-1212	3/4"-14	7/8"-18	15.00	15.00	18.10	66.00	126.50	32	32
-16	DP9BPF-RU-1616	1"-11	1-3/16"-16	19.80	19.80	23.80	73.80	146.00	36	41
