Location: Home Fluid Connector Hose Fittings ReusableDP4BPF-RU

DP4BPF-RU 45° Elbow Connector BSPP Swivel Female 60° – Reusable Tail for R1/R2/R5

DCompanyDME
PProduct RangeHose Fitting
4Fitting Structure45° Elbow
BPThread TypesBSPP
FConnection TypeSwivel Female
RUHose Fitting TypeReusable

A drawing of DP4BPF-RU hydraulic adaptor.

A 3D drawing of DP4BPF-RU hydraulic adaptor.

A model drawing of DP4BPF-RU hydraulic adaptor.

DME&JDE Code: DP4BPF-RU
Product Type: Hose Fitting
Hose Fitting Type: Reusable
Available Hoses: 100 R1, 100 R2 or 100 R5
Thread Type: BSPP 60° Cone × UNF
Structure: 45° Elbow
Connection Type: Swivel Female

Technical Data of DP4BPF-RU

-04
-06
-08
-12
-16

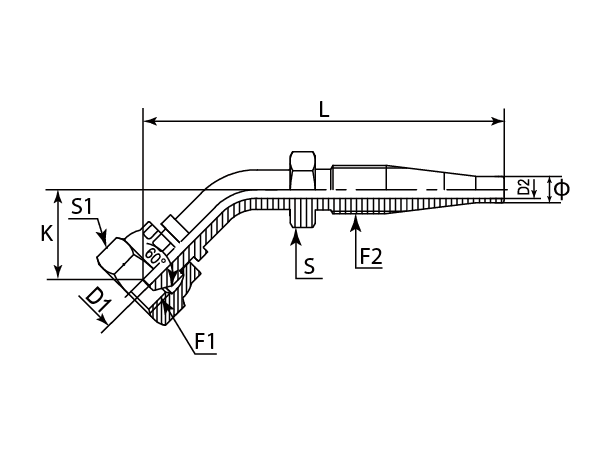

A drawing of DP4BPF-RU reusable hose fitting of DME&JDE.

-	Part Number	F1 (Thread)	F2 (Thread)	D1/D2	Ø	K	L	S	S1
-	-	BSPP	UNF	mm	mm	mm	mm	mm	mm
-01	DP4BPF-RU-0404	1/4"-19	7/16"-20	4.00	6.00	20.00	83.00	15	19
-06	DP4BPF-RU-0606	3/8"-19	9/16"-18	7.00	8.80	22.60	94.00	19	22
-08	DP4BPF-RU-0808	1/2"-14	5/8"-18	9.30	11.50	26.00	112.00	24	27
-12	DP4BPF-RU-1212	3/4"-14	7/8"-18	15.00	18.10	31.80	140.50	32	32
-16	DP4BPF-RU-1616	1"-11	1-3/16"-16	19.80	23.80	35.00	161.00	36	41
