Location: Home Fluid Connector Hose Fittings ReusableDP1JCF-RU

DP1JCF-RU Straight Connector JIC Swivel Female – Reusable Tail for R1/R2/R5

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
JCThread TypesJIC UNF
FConnection TypeFemale
RUHose Fitting TypeReusable

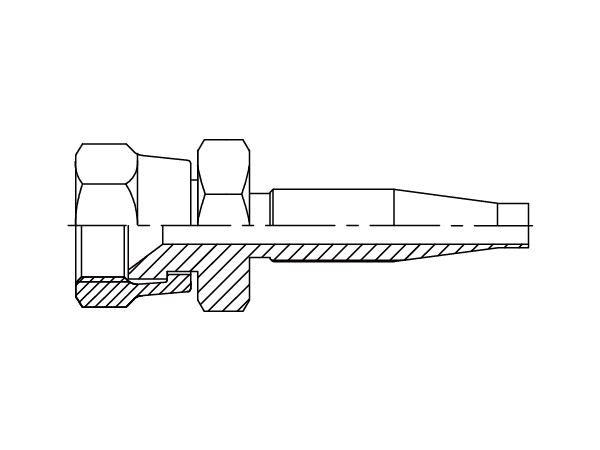

A drawing of DP1JCF-RU hydraulic adaptor.

A 3D drawing of DP1JCF-RU hydraulic adaptor.

A model drawing of DP1JCF-RU hydraulic adaptor.

DME&JDE Code: DP1JCF-RU
Product Type: Hose Fitting
Hose Fitting Type: Reusable
Available Hoses: 100 R1, 100 R2 or 100 R5
Thread Type: UNF 74°Cone × UNF
Structure: Straight
Connection Type: Swivel Female

Technical Data of DP1JCF-RU

-04
-06
-08
-10
-12
-16

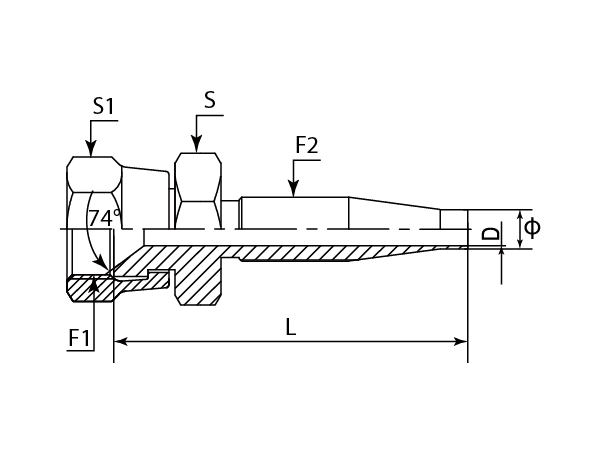

A drawing of DP1JCF-RU reusable hose fitting of DME&JDE.

-	Part Number	F1 (Thread)	F2 (Thread)	D	Ø	L	S	S1
-	-	UNF	UNF	mm	mm	mm	mm	mm
-01	DP1JCF-RU-0404	7/16"-20	7/16"-20	4.00	6.00	57.00	15	17
-06	DP1JCF-RU-0604	9/16"-18	7/16"-20	4.00	6.00	60.50	17	19
-06	DP1JCF-RU-0605	9/16"-18	1/2"-20	6.90	9.00	62.50	19	19
-06	DP1JCF-RU-0606	9/16"-18	9/16"-18	7.00	8.80	67.00	19	19
-08	DP1JCF-RU-0806	3/4"-16	9/16"-18	7.00	8.80	71.00	24	24
-08	DP1JCF-RU-0808	3/4"-16	5/8"-18	9.30	11.50	73.50	24	24
-10	DP1JCF-RU-1008	7/8"-14	5/8"-18	9.30	11.50	76.50	27	27
-10	DP1JCF-RU-1010	7/8"-14	3/4"-18	12.30	14.80	76.50	27	27
-12	DP1JCF-RU-1212	1-1/16"-12	7/8"-18	15.00	18.10	89.00	32	32
-16	DP1JCF-RU-1616	1-5/16"-12	1-3/16"-16	19.80	23.80	103.00	36	38

Certificate

ISO 9001

ISO 14001

ISO 45001

MSHA

IATF

BV

DAkkS

SGS

GOST

DEKRA

DIN

SAE

MA

WSF

Other Items You Might Like

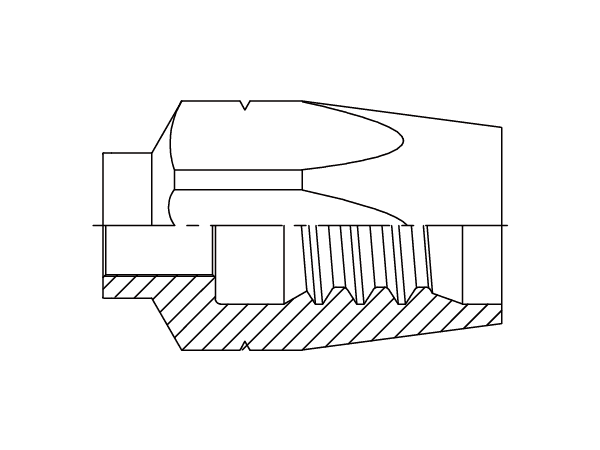

A drawing of DPF1T-RU reusable hose fitting of DME&JDE.

Ferrule, Reusable 1 Wide

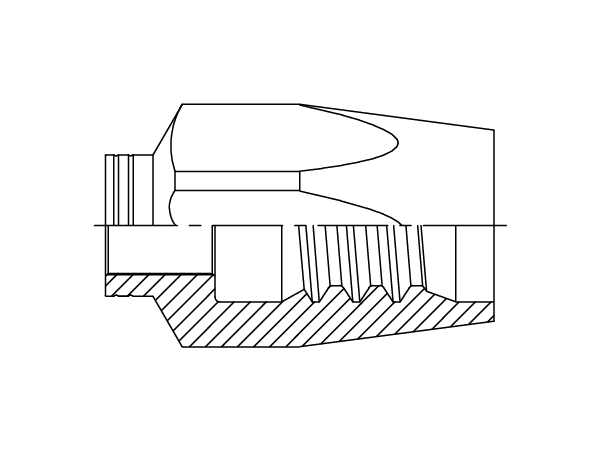

A drawing of DPF2T-RU reusable hose fitting of DME&JDE.

Ferrule, Reusable 2 Wide

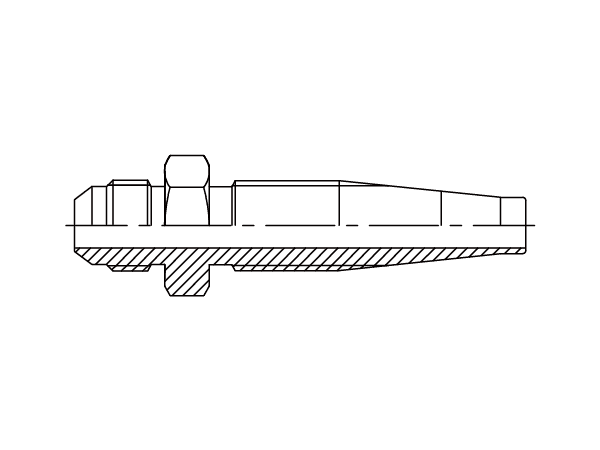

A drawing of DP1JCM-RU reusable hose fitting of DME&JDE.

Straight Connector JIC Male 60° – Reusable Tail for R1/R2/R5

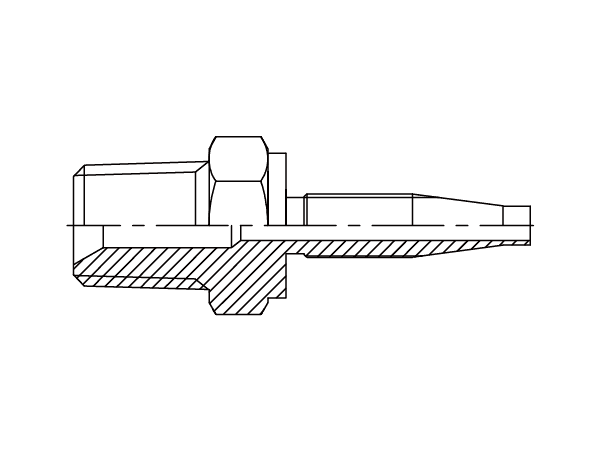

A drawing of DP1NPM-RU reusable hose fitting of DME&JDE.

Straight Connector NPTF Male 60° – Reusable Tail for R1/R2/R5

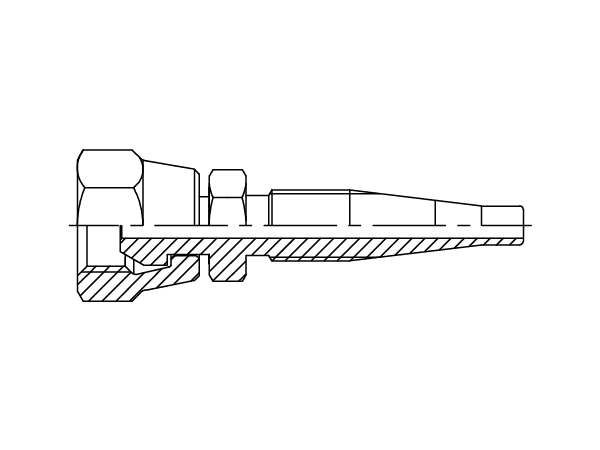

A drawing of DP1BPF-RU reusable hose fitting of DME&JDE.

Straight Connector BSPP Swivel Female 60° – Reusable Tail for R1/R2/R5

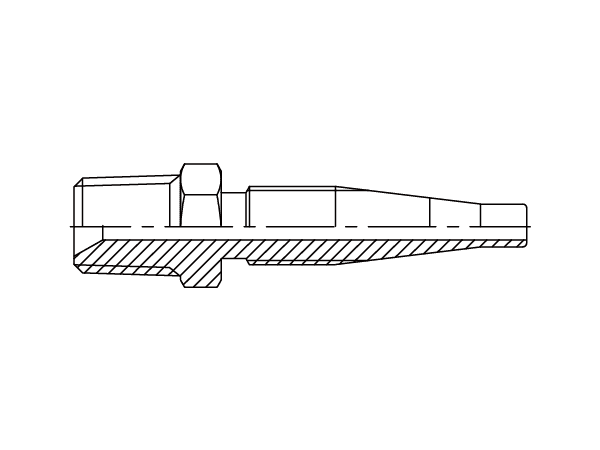

A drawing of DP1BTM-RU reusable hose fitting of DME&JDE.

Straight Connector BSPT Male 60° – Reusable Tail for R1/R2/R5

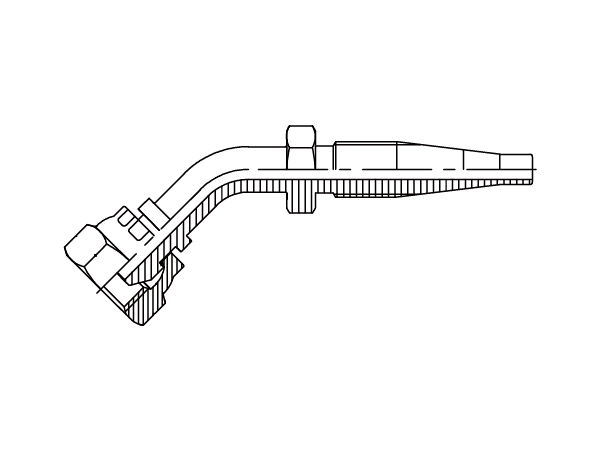

A drawing of DP4BPF-RU reusable hose fitting of DME&JDE.

45° Elbow Connector BSPP Swivel Female 60° – Reusable Tail for R1/R2/R5

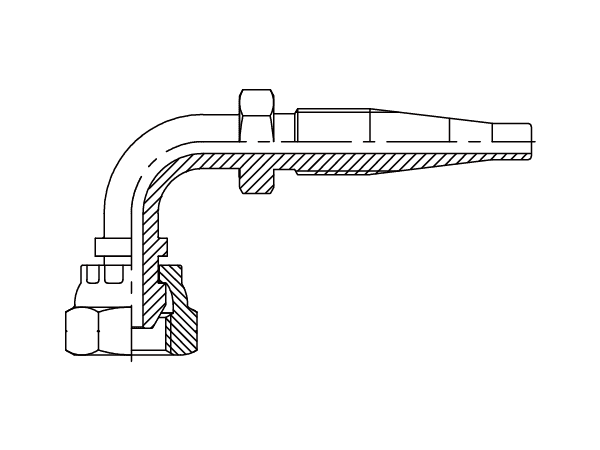

A drawing of DP9BPF-RU reusable hose fitting of DME&JDE.

90° Swept Elbows BSPP Swivel Female 60° – Reusable Tail for R1/R2/R5

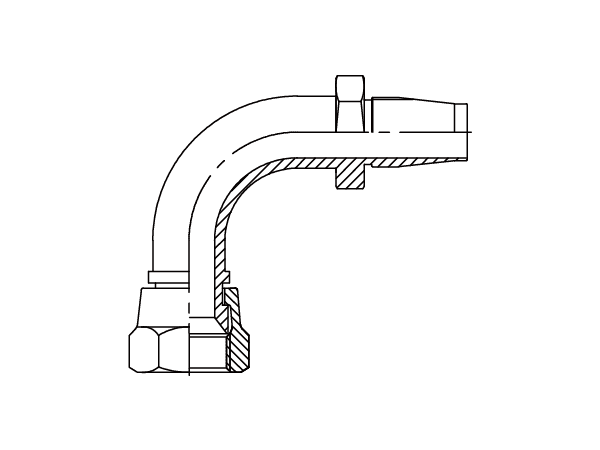

A drawing of DP9JCF-RU reusable hose fitting of DME&JDE.
