Location: Home Fluid Connector Hose Fittings ReusableDP1BTM-RU

DP1BTM-RU Straight Connector BSPT Male 60° – Reusable Tail for R1/R2/R5

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
BTThread TypesBSPT
MConnection TypeMale
RUHose Fitting TypeReusable

A drawing of DP1BTM-RU hydraulic adaptor.

A 3D drawing of DP1BTM-RU hydraulic adaptor.

A model drawing of DP1BTM-RU hydraulic adaptor.

DME&JDE Code: DP1BTM-RU
Product Type: Hose Fitting
Hose Fitting Type: Reusable
Available Hoses: 100 R1, 100 R2 or 100 R5
Thread Type: BSPT 60° Cone × UNF
Structure: Straight
Connection Type: Male

Technical Data of DP1BTM-RU

-04
-06
-08
-12
-16

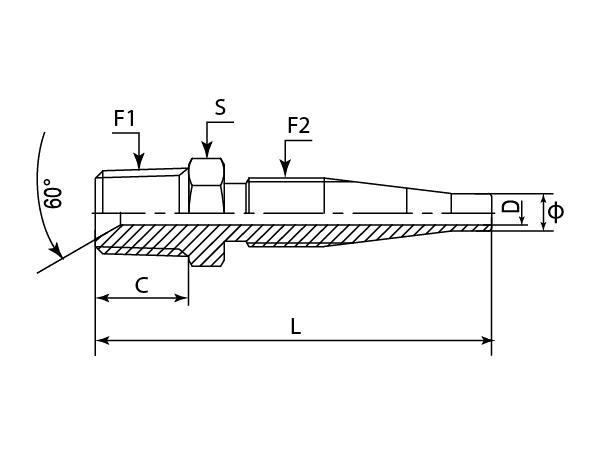

A drawing of DP1BTM-RU reusable hose fitting of DME&JDE.

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	Ø	L	S
-	-	BSPT	UNF	mm	mm	mm	mm	mm
-01	DP1BTM-RU-0404	1/4"-19	7/16"-20	14.50	4.00	6.00	63.20	15
-06	DP1BTM-RU-0606	3/8"-19	9/16"-18	15.00	7.00	8.80	71.50	19
-08	DP1BTM-RU-0808	1/2"-14	5/8"-18	20.00	9.30	11.50	82.10	24
-12	DP1BTM-RU-1212	3/4"-14	7/8"-18	19.50	15.00	18.10	94.80	32
-16	DP1BTM-RU-1616	1"-11	1-3/16"-16	25.50	19.80	23.80	112.50	36
