DASTH906Q 90° Adjustable Elbow Suction Tail for Rubber Hose – BSPP Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • STHAdaptor TypeSuction Tail
  • 9Fitting Structure90° Elbow
  • 06Thread TypesBSPP
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DASTH906Q
  • Product Type: hydraulic adaptor
  • Hose Fitting Type: Suction Tail
  • Thread Type: BSPP + O Ring + Retaining Ring
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DASTH906Q
  • -12
  • -16
  • -20
  • -24
  • -32

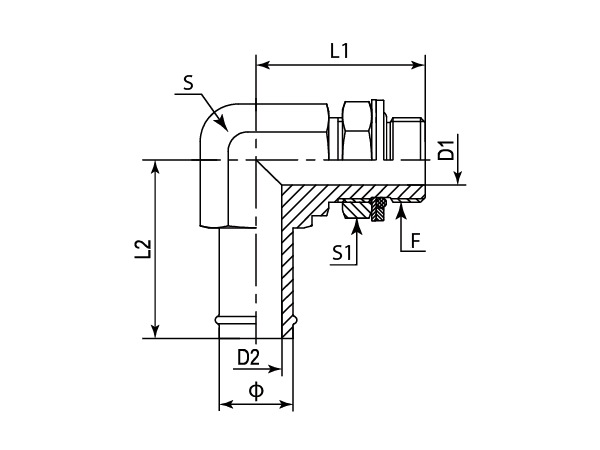

A drawing of DASTH906Q suction tail hydraulic adaptor of DME&JDE.
- Part Number F (Thread) Ø D1 D2 L1 L2 S S1 Cross Number
- - BSPP Inch mm mm mm mm mm mm -
-01 DASTH906Q-1212 3/4"-14 19.05 15.50 15.90 50.00 49.20 28.58 36 BPM9-1212L
-16 DASTH906Q-1612 3/4"-14 25.40 15.50 21.44 50.00 56.56 28.57 36 BPM9-1216L
-16 DASTH906Q-1616 1"-11 25.40 21.50 21.40 53.00 55.50 33.30 41 BPM9-1616L
-20 DASTH906Q-2012 3/4"-14 31.75 15.50 27.80 56.00 65.00 41.27 36 BPM9-1220L
-20 DASTH906Q-2016 1"-11 31.75 21.50 27.80 53.00 56.50 41.30 41 BPM9-1620L
-20 DASTH906Q-2020 1-1/4"-11 31.75 27.50 27.80 58.00 66.40 41 50 BPM9-2020L
-20 DASTH906Q-2024 1-1/2"-11 31.75 33.00 27.80 60.70 68.00 47.60 55 BPM9-2420L
-24 DASTH906Q-2416 1"-11 38.10 21.50 34.10 60.00 65.00 47.63 41 BPM9-1624L
-24 DASTH906Q-2420 1-1/4"-11 38.10 27.50 34.10 60.70 68.00 48 50 BPM9-2024L
-24 DASTH906Q-2424 1-1/2"-11 38.10 33.00 34.10 66.50 71.10 47.60 55 BPM9-2424L
-32 DASTH906Q-3220 1-1/4"-11 50.80 27.50 46.80 75.00 77.70 63.50 50 BPM9-2032L
-32 DASTH906Q-3224 1-1/2"-11 50.80 33.00 46.80 75.00 77.70 63.50 55 BPM9-2432L
-32 DASTH906Q-3232 2"-11 50.80 45.00 46.80 75.00 77.70 63.50 70 BPM9-3232L
