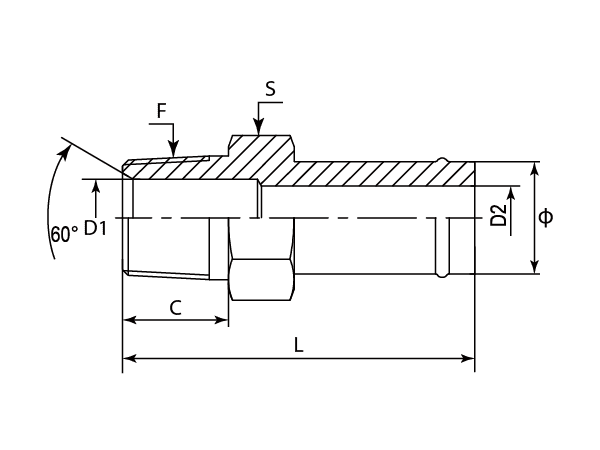

| - | Part Number | F (Thread) | Ø | C | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | Inch | mm | mm | mm | mm | mm |
| -01 | DASTH128M-0402 | 1/8"-27 | 6.35 | 9.65 | 4.78 | 4.80 | 55.10 | 11.10 |
| -01 | DASTH128M-0404 | 1/4"-18 | 6.35 | 14.22 | 7.14 | 4.80 | 59.70 | 14.30 |
| -05 | DASTH128M-0502 | 1/8"-27 | 7.94 | 9.65 | 4.78 | 6.40 | 55.12 | 11.10 |
| -05 | DASTH128M-0504 | 1/4"-18 | 7.94 | 14.22 | 6.40 | 6.40 | 60.20 | 15.88 |
| -06 | DASTH128M-0602 | 1/8"-27 | 9.53 | 9.65 | 4.78 | 7.54 | 55.10 | 14.27 |
| -06 | DASTH128M-0604 | 1/4"-18 | 9.53 | 14.22 | 7.14 | 7.14 | 59.44 | 15.88 |
| -06 | DASTH128M-0606 | 3/8"-18 | 9.53 | 14.22 | 10.31 | 7.54 | 59.72 | 19.05 |
| -08 | DASTH128M-0806 | 3/8"-18 | 12.70 | 14.22 | 10.31 | 10.31 | 59.50 | 19.05 |
| -08 | DASTH128M-0808 | 1/2"-14 | 12.70 | 19.05 | 13.49 | 10.30 | 66.05 | 23.81 |
| -08 | DASTH128M-0812 | 3/4"-14 | 12.70 | 19.05 | 18.26 | 10.30 | 67.80 | 28.58 |
| -10 | DASTH128M-1006 | 3/8"-18 | 15.87 | 14.22 | 10.31 | 12.70 | 59.72 | 22.22 |
| -10 | DASTH128M-1008 | 1/2"-14 | 15.87 | 19.05 | 12.70 | 12.70 | 66.04 | 23.80 |
| -10 | DASTH128M-1012 | 3/4"-14 | 15.88 | 19.05 | 18.26 | 12.70 | 68.38 | 28.58 |
| -12 | DASTH128M-1208 | 1/2"-14 | 19.05 | 19.05 | 13.49 | 15.90 | 66.05 | 25.40 |
| -12 | DASTH128M-1212 | 3/4"-14 | 19.05 | 19.05 | 18.26 | 15.90 | 67.85 | 28.57 |
| -12 | DASTH128M-1216 | 1-11" | 19.05 | 23.88 | 23.83 | 15.90 | 73.30 | 34.93 |
| -16 | DASTH128M-1608 | 1/2"-14 | 25.40 | 19.05 | 13.49 | 21.44 | 69.00 | 31.75 |
| -16 | DASTH128M-1612 | 3/4"-14 | 25.39 | 19.05 | 18.26 | 21.40 | 67.85 | 31.75 |
| -16 | DASTH128M-1616 | 1-11" | 25.40 | 23.88 | 23.83 | 21.44 | 72.68 | 34.93 |
| -16 | DASTH128M-1620 | 1-1/4"-11 | 25.40 | 24.64 | 31.75 | 21.44 | 74.94 | 44.45 |
| -20 | DASTH128M-2016 | 1"-11 | 31.75 | 23.88 | 23.83 | 27.80 | 72.60 | 34.93 |
| -20 | DASTH128M-2020 | 1-1/4"-11 | 31.75 | 24.64 | 31.75 | 27.80 | 74.94 | 44.45 |
| -20 | DASTH128M-2024 | 1-1/2"-11 | 31.75 | 25.40 | 38.10 | 27.80 | 77.99 | 50.80 |
| -24 | DASTH128M-2420 | 1-1/4"-11 | 38.10 | 24.64 | 31.75 | 34.10 | 74.94 | 44.45 |
| -24 | DASTH128M-2424 | 1-1/2"-11 | 38.10 | 25.40 | 34.10 | 34.10 | 76.20 | 50.80 |
| -32 | DASTH128M-3232 | 2"-11 | 50.80 | 26.16 | 49.23 | 46.80 | 82.76 | 63.50 |
