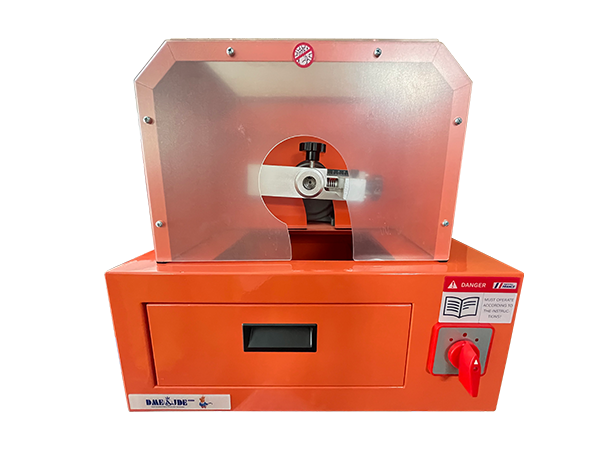

DME&JDE Hose Skive-100 With Easy Moving Design

The DME&JDE HOSE SKIVE-100(Easy Move) Hose Skiving Machine adopts the current advanced rubber stripping technology and is easy to operate.
Insert the hose into the mandrel to start peeling, and gradually push the hose in, while the knife bar rotates, and the knife bar is driven by the motor to rotate and peel, and the turning tool is firmly installed on the knife bar, so that the hose just moves toward Pushing in, the outer layer of rubber is turned off by the turning tool. After turning is completed, the rubber tube can be pulled out.

DME&JDE Hose Skive-100 With Easy Moving Design
Note During Transportation
  • Please handle with care
  • Please use a forklift for loading and unloading the machine.
  • Please keep the machine dry
  • Please don’t fall not pressure
  • Must be placed upright
Details

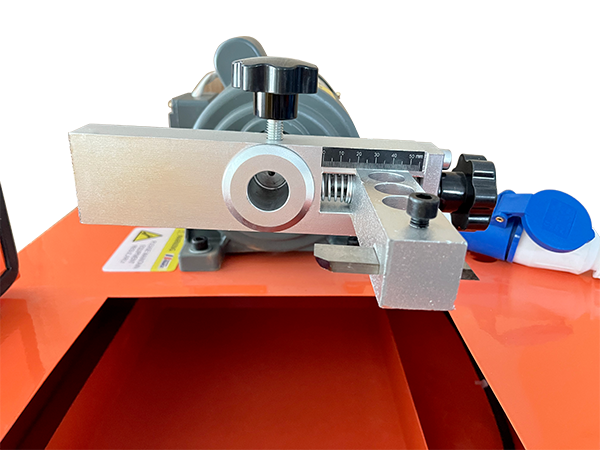

machine-head

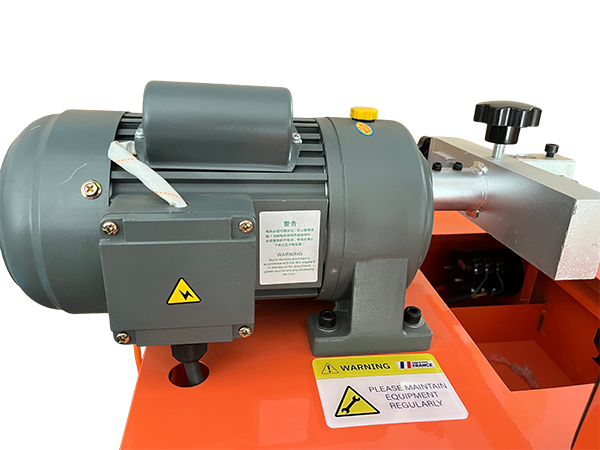

electric-motor

Specification
Table 1:Skiving Machine Technical Data
Model HOSE SKIVE-100(Easy Move)
Voltage 380V / 220V
Motor Power 400W
Motor Speed 170 r/min
Skive Range Φ6 - Φ51
Bare Machine Size 530 × 570 × 460mm
Package Size 600 × 620 × 660mm
Net Weight 30Kg
Gross Weight 42Kg
