SAE J517 R3 Textile Braided Hydraulic Hose

Applicable Specs:
  • SAE 100R3
  • ISO 4079
Applications:
An icon of agricultural equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of cleaning equipment of hydraulic hose application. An icon of forestry equipment of hydraulic hose application.
Italy Technology Equipment Italy Technology Equipment
Product Series:
  • DME&JDE SHIELD FLEX Series Products

    New-Standard

  • DME&JDE DEFT FLEX Series Products

    Ultra Soft & Flexible

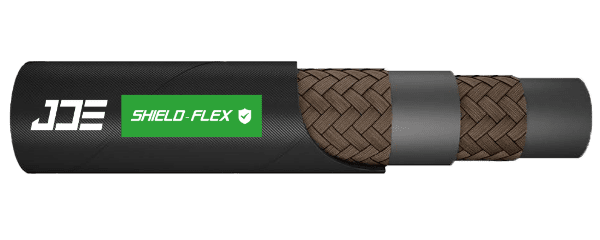

An SAE J517 R3 fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 2 layers of textile braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type PUSH-ON-R3
    • Insert: PUSH-ON-R3 (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
An SAE J517 R3 fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    26–105 Bar / 377–1523 PSI

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
JDE 311103-05 -03 4.8 3/16'' 4.5-5.4 - 11.9-13.5 105 1522.5 420 6090 75 0.130 50/100 PUSH-ON-R3-03
JDE 311103-06 -04 6.4 1/4'' 6.1-7.0 - 13.5-15.1 87 1261.5 348 5046 75 0.180 50/100 PUSH-ON-R3-04
JDE 311103-08 -05 8.0 5/16'' 7.6-8.5 - 16.7-18.3 84 1218 336 4872 100 0.280 50/100 PUSH-ON-R3-05
JDE 311103-10 -06 9.5 3/8'' 9.2-10.1 - 18.3-19.8 78 1131 312 4524 100 0.300 50/100 PUSH-ON-R3-06
JDE 311103-12 -08 12.7 1/2'' 12.4-13.5 - 23.0-24.6 70 1015 280 4060 125 0.420 50/100 PUSH-ON-R3-08
JDE 311103-16 -10 16.0 5/8'' 15.6-16.7 - 26.2-27.8 61 884.5 244 3538 140 0.470 50/100 PUSH-ON-R3-10
JDE 311103-19 -12 19.0 3/4'' 18.7-19.8 - 31.0-32.5 52 754 208 3016 150 0.680 50/100 PUSH-ON-R3-12
JDE 311103-25 -16 25.4 1'' 25.1-26.2 - 36.9-39.3 39.0 565.5 156 2262 205.0 0.9 50/100 PUSH-ON-R3-16
Marking / Layline (Printing, Ink, Embossed)
A SAE J517 R3 flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel
