ISO 1436 2ST Wire Braided Hydraulic Hose

Applicable Specs:
  • DIN EN853 2ST
  • EXCEEDS SAE 100R2A
  • ISO 1436:2009
  • ISO 1307
  • PN-G-32010 / PN-EN ISO 8030 / PN-EN13463
  • PN-EN 1804-3+A1
  • PN-EN ISO 4413
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of automation equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of machine tool equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE SHIELD FLEX Series Products

    New-Standard

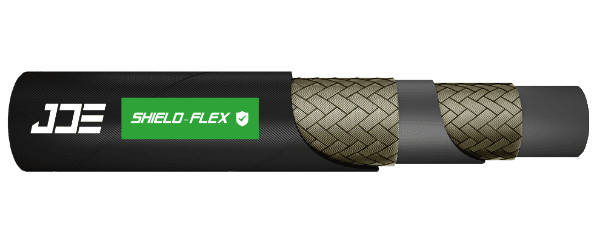

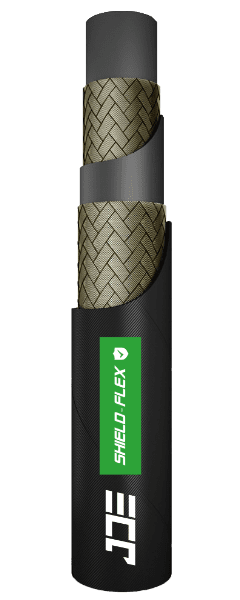

An ISO 1436 2ST fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:

    2 layers of steel wire braid

  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX2XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
An ISO 1436 2ST fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    80–415 Bar / 1160–6017PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 200,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
JDE 211112-05 -03 4.8 3/16'' 4.6-5.4 10.6-11.6 15.1-16.7 415 6017.5 1660 24070 90 0.340 50/100 DPF2T-03
JDE 211112-06 -04 6.4 1/4'' 6.2-7.0 12.1-13.3 16.7-18.3 400 5800 1600 23200 100 0.372 50/100 DPF2T-04
JDE 211112-08 -05 8.0 5/16'' 7.7-8.5 13.7-14.9 18.3-19.9 350 5075 1400 20300 115 0.430 50/100 DPF2T-05
JDE 211112-10 -06 9.5 3/8'' 9.3-10.1 16.1-17.3 20.6-22.2 330 4785 1320 19140 130 0.560 50/100 DPF2T-06
JDE 211112-12 -08 12.7 1/2'' 12.3-13.5 19.0-20.6 23.8-25.4 275 3987.5 1100 15950 180 0.640 50/100 DPF2T-08
JDE 211112-16 -10 16.0 5/8'' 15.5-16.7 22.2-23.8 27.0-28.6 250 3625 1000 14500 200 0.732 50/100 DPF2T-10
JDE 211112-19 -12 19.0 3/4'' 18.6-19.8 26.2-27.8 31.0-32.6 215 3117.5 860 12470 240 0.930 50/100 DPF2T-12
JDE 211112-25 -16 25.4 1'' 25.0-26.4 34.1-35.7 38.5-40.9 165 2392.5 660 9570 300 1.360 50/100 DPF2T-16
JDE 211112-32 -20 31.8 1-1/4'' 31.4-33.0 43.3-45.7 49.2-52.4 125 1812.5 500 7250 420 1.850 20/40 DPF2T-20
JDE 211112-38 -24 38.1 1-1/2'' 37.7-39.3 49.6-52.0 55.6-58.8 90 1305 360 5220 500 2.300 20/40 DPF2T-24
JDE 211112-51 -32 50.8 2" 50.4-52.0 62.3-64.7 68.2-71.4 80 1160 320 4640 630 2.650 20/40 DPF2T-32
Marking / Layline (Printing, Ink, Embossed)
A ISO 1436 2ST flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black

Certificate
