BS EN 1360 2T Textile Braided Fluid Hose

  • An icon shows the hose of DME&JDE is ultraviolet resistance.
  • An icon shows the hose of DME&JDE is high temperature resistance.
  • An icon shows the hose of DME&JDE is low temperature resistance.
Applicable Specs:
  • EN 1360 1W
  • SAE J30 2T TEXTILE BRAID
Applications:
An icon of fuel/gasoline/diesel oil equipment of hydraulic hose application.
Italy Technology Equipment Italy Technology Equipment
Product Series:
  • DME&JDE SHIELD FLEX Series Products

    New-Standard

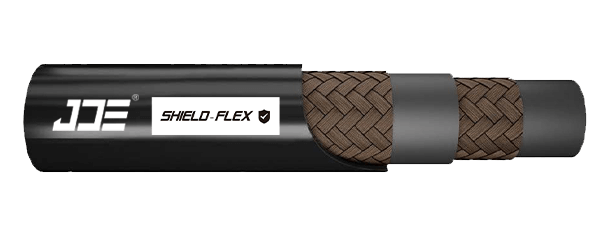

An BS EN 1360 2T fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber resistant to petrol and diesel fuel, extruded whole without joints, of uniform thickness.Anti-static electricity:R < 1MΩ

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 2 layers of textile braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions. Anti-static electricity:R < 1 MΩ

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX1XX (X: Can choose)

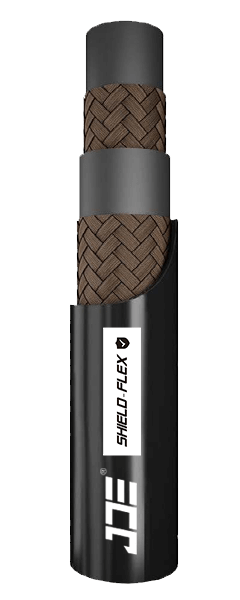

An BS EN 1360 2T fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    20 Bar / 290 PSI

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Petrol and diesel fuel
    • Petrol and diesel fuel dispensing lines of pressure 290 Psi
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
JDE 421102-12 -08 12.0 1/2" 12.3-13.5 - 22.23 MAX. 20 290 80 1160 60 0.39 50/100 FUEL-08
JDE 421102-16 -10 16.0 5/8'' 15.5-16.7 - 24.5 MAX. 20 290 80 1160 80 0.400 50/100 FUEL-10
JDE 421102-19 -12 19.0 3/4'' 18.6-19.8 - 29.9 MAX. 20 290 80 1160 100 0.450 50/100 FUEL-12
JDE 421102-22 -13 22.0 7/8'' 21.6-22.5 - 33.0 MAX 20 290 80 1160 125 0.570 50/100 FUEL-13
JDE 421102-25 -16 25.4 1'' 25.0-26.4 - 35.4 MAX. 20 290 80 1160 150 0.590 50/100 FUEL-16
Marking / Layline (Printing, Ink, Embossed)
A BS EN 1360 2T flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped, Smooth

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black Red Gray Yellow Green Blue
