New-Standard

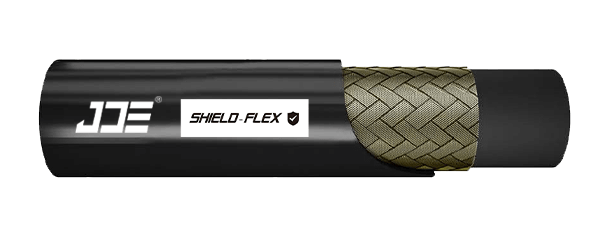

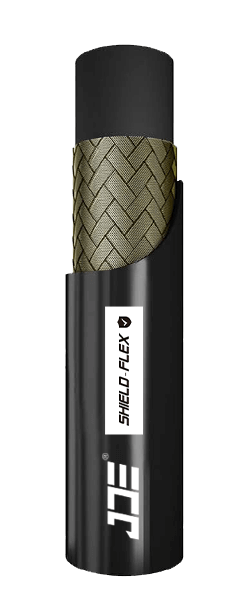

Synthetic rubber resistant to petrol and diesel fuel, extruded whole without joints, of uniform thickness. Anti-static electricity:R < 1MΩ
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions. Anti-static electricity:R < 1 MΩ
20 Bar / 290 PSI
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DME Code |
| JDE 421101-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | 20.6-22.2 | 24.5 MAX. | 20 | 290 | 80 | 1160 | 80 | 0.581 | 50/100 | FUEL-10 |
| JDE 421101-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 24.6-26.2 | 29.9 MAX. | 20 | 290 | 80 | 1160 | 100 | 0.690 | 50/100 | FUEL-12 |
| JDE 421101-22 | -13 | 22.0 | 7/8'' | 21.6-22.5 | 28±0.3 | 33.0 MAX | 20 | 290 | 80 | 1160 | 125 | 0.700 | 50/100 | FUEL-13 |
| JDE 421101-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 32.5-34.1 | 35.4 MAX. | 20 | 290 | 80 | 1160 | 150 | 0.725 | 50/100 | FUEL-16 |
Cover Type: Wrapped, Smooth
Packing Type: Roll, Pallet, Reel
Outward Appearance: Black Red Gray Yellow Green Blue
