Long Life 400 [+155 °C] 2S Wire Braided Washing Hose

Applicable Specs:
  • DIN EN 853 2SN
  • EXCEEDS SAE 100R2AT
  • ISO 1436:2009
  • ISO 1307
  • PN-EN ISO 8030 / PN-EN 13463
  • PN-EN 1804-3+A1 / PN-EN ISO 4413
  • ISO 6805 / EN 13463
  • PN-G 32010
Applications:
An icon of cleaning equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE KONIG FLEX Series Products

    -55 °C / +155 °C

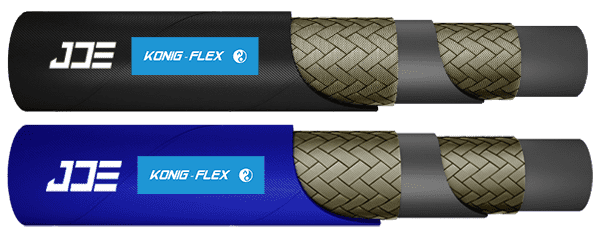

An JET Washer Hose 2W – 155 °C fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 2 layers of steel wire braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX2XX or DPX1XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved

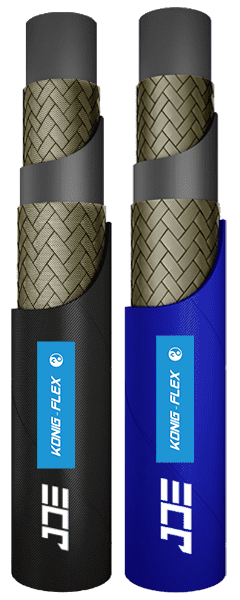

An JET Washer Hose 2W – 155 °C fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    400 Bar / 5800 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 200,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +135 °C (intermittent 155 °C)
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. Braid O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
DEF 211122-06 155 -4 6.4 1/4" 6.2-7.0 11.3 13.2 400 5800 1600 23200 50 1.19 95-105 DPF2C-04
DEF 211122-08 155 -5 8.0 5/16" 7.7-8.5 13.1 14.7 400 5800 1400 20300 55 0.20 95-105 DPF2C-05
DEF 211122-10 155 -6 9.5 3/8" 9.3-10.1 15.3 17.0 400 5800 1320 19140 65 0.26 95-105 DPF2C-06
DEF 211122-12 155 -8 12.7 1/2" 12.3-13.5 18.5 20.7 400 5800 1100 15950 90 0.39 95-105 DPF2C-08
Marking / Layline (Printing, Ink, Embossed)
A JET Washer Hose 2W – 155 °C flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped, Smooth

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black Gray Klein Blue
