ISO 3862 4SP Wire Spiral Hydraulic Hose

Applicable Specs:
  • DIN 20023 PART 1 TYPE 4SP
  • TS 10548
  • ISO 1307
  • ISO 8030 / EN 1804 / EN 13463-1
  • ISO 4413
  • ISO 3862 4SP
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of mining equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of forestry equipment of hydraulic hose application.
American Technology Equipment American Technology Equipment
Product Series:
  • DME&JDE SHIELD FLEX Series Products

    New-Standard

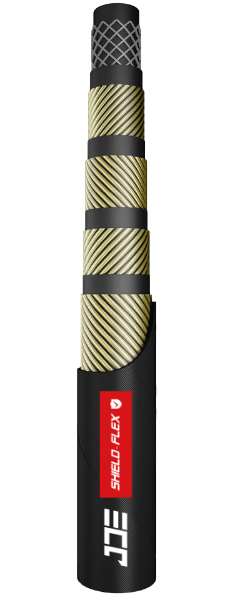

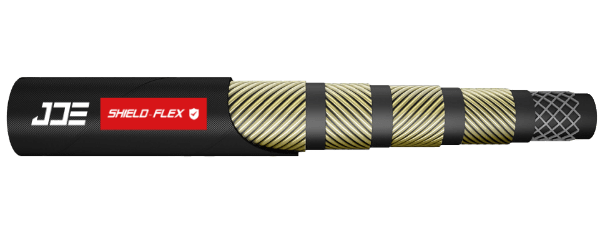

An ISO 3862 4SP fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 4 layers of steel wire spiral
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF4T
    • Insert: DPX4XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
An ISO 3862 4SP fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    165–445 Bar / 2393–6453 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 400,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
JDE 211104-10 -06 9.5 3/8'' 9.3-10.1 16.9-18.1 20.6-22.2 445 6452.5 1780 25810 180 0.700 20/40 DPF4T-06
JDE 211104-12 -08 12.7 1/2'' 12.3-13.5 19.4-21.0 23.8-25.4 415 6017.5 1660 24070 230 0.800 20/40 DPF4T-08
JDE 211104-16 -10 16.0 5/8'' 15.5-16.7 23.0-24.6 27.4-29.0 350 5075 1400 20300 250 0.975 20/40 DPF4T-10
JDE 211104-19 -12 19.0 3/4'' 18.6-19.8 27.4-29.0 31.4-33.0 350 5075 1400 20300 300 1.450 20/40 DPF4T-12
JDE 211104-25 -16 25.4 1'' 25.0-26.4 34.5-36.1 38.5-40.9 280 4060 1120 16240 340 2.050 20/40 DPF4T-16
JDE 211104-32 -20 31.8 1-1/4'' 31.4-33.0 45.0-47.0 49.2-52.4 210 3045 840 12180 460 3.060 20/40 DPF4T-20
JDE 211104-38 -24 38.1 1-1/2'' 37.7-39.3 51.4-53.4 55.6-58.8 185 2682.5 740 10730 560 3.650 20/40 DPF4T-24
JDE 211104-51 -32 50.8 2'' 50.4-52.0 64.3-66.3 68.2-71.4 165 2392.5 660 9570 660 4.850 20/40 DPF4T-32
Marking / Layline (Printing, Ink, Embossed)
A ISO 3862 4SP flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black
