ISO 11237 1SC Wire Braided Hydraulic Hose

Applicable Specs:
  • DIN EN 857 1SC
  • ISO 1436:2009
  • TS 6387 EN 857 1SC
  • ISO 1307
  • ISO 6805
  • EN 13463-1
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of mining equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of automation equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE DEFT FLEX Series Products

    Ultra Soft & Flexible

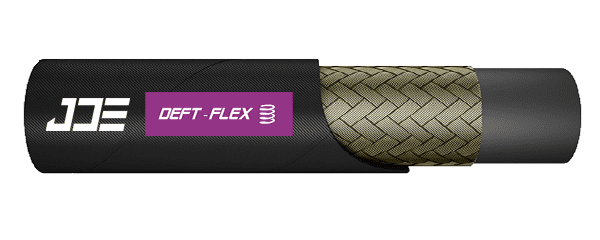

An ISO 11237 1SC fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 1 layer of steel wire braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX1XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved

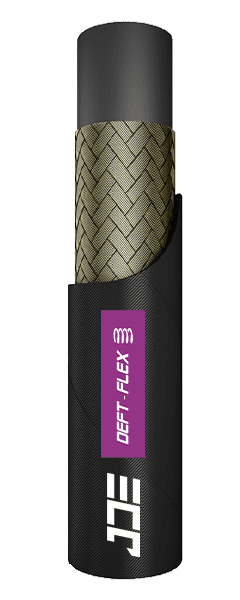

An ISO 11237 1SC fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    88–225 Bar / 1276–3262.5 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 150,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
DEF 211121-06 -04 6.4 1/4'' 6.1–6.9 9.6–10.8 13.5 MAX. 225 3262.5 900 13050 75 0.190 50/100 DPF2T-04
DEF 211121-08 -05 8.0 5/16'' 7.7–8.5 10.9–12.1 14.5 MAX. 215 3117.5 860 12470 85 0.220 50/100 DPF2T-05
DEF 211121-10 -06 9.5 3/8'' 9.3–10.1 12.7–14.5 16.9 MAX. 180 2610 720 10440 90 0.250 50/100 DPF2T-06
DEF 211121-12 -08 12.7 1/2'' 12.3–13.5 15.9–18.1 20.4 MAX. 160 2320 640 9280 130 0.350 50/100 DPF2T-08
DEF 211121-16 -10 16.0 5/8'' 15.5–16.7 19.8–21.0 23.0 MAX. 130 1885 520 7540 150 0.450 50/100 DPF2T-10
DEF 211121-19 -12 19.0 3/4'' 18.6–19.8 23.2–24.4 26.7 MAX. 105 1522.5 420 6090 180 0.500 50/100 DPF2T-12
DEF 211121-25 -16 25.4 1'' 25.0–26.4 30.7–31.9 34.9 MAX. 88 1276 352 5104 230 0.750 50/100 DPF2T-16
Marking / Layline (Printing, Ink, Embossed)
A ISO 11237 1SC flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black
