GB/T 3683 3SW Wire Braided Hydraulic Hose

Applicable Specs:
  • Steel Wire Braid Hydraulic Hose: Wrapped Cover 3W
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of automation equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of machine tool equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE SHIELD FLEX Series Products

    New-Standard

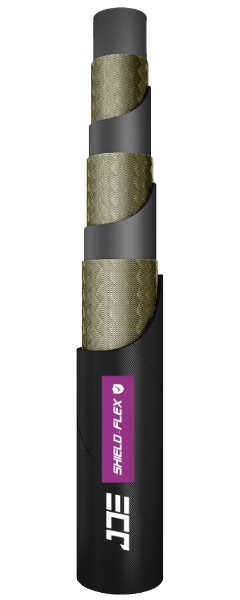

An GB/T 3683 3SW fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 3 layers of steel wire braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX2XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved

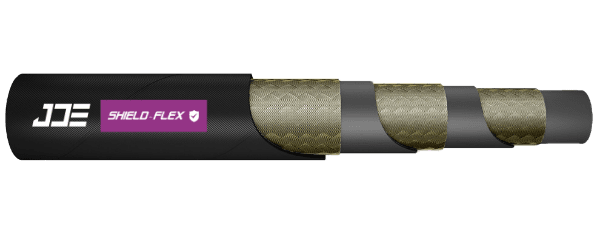

An GB/T 3683 3SW fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    10–600 Bar / 145–8700 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 200,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
JDE 111103-6 -04 6.4 1/4'' 6.2-7.0 14±0.4 16.8 Max 600 8700 2400 34800 100 0.372 10-110 DPF3T-04
JDE 111103-8 -05 8.0 5/16'' 7.7-8.5 17.3±0.4 20.2 Max 500 7250 2000 29000 115 0.430 10-110 DPF3T-05
JDE 111103-10 -06 9.5 3/8'' 9.3-10.1 19±0.4 22.2 Max 450 6525 1800 26100 130 0.560 10-110 DPF3T-06
JDE 111103-12 -08 12.7 1/2'' 12.3-13.5 22.8±0.4 26.0 Max 400 5800 1600 23200 180 0.640 10-110 DPF3T-08
JDE 111103-16 -10 16.0 5/8'' 15.5-16.7 25.8±0.4 29.4 Max 350 5075 1400 20300 200 0.732 10-110 DPF3T-10
JDE 111103-19 -12 19.0 3/4'' 18.6-19.8 28.8±0.4 32.8 Max 280 4060 1120 16240 240 0.930 10-110 DPF3T-12
JDE 111103-22 -14 22.0 7/8'' 21.6-22.4 31.6±0.4 35.2 Max 250 3625 1000 14500 280 1.000 10-110 DPF3T-14
JDE 111103-25 -16 25.4 1'' 25.0-26.4 34.8±0.4 38.9 Max 240 3480 960 13920 300 1.360 10-110 DPF3T-16
JDE 111103-32 -20 31.8 1-1/4'' 31.4-33.0 42.4±0.5 49.5 Max 190 2755 760 11020 420 1.850 10-45 DPF3T-20
JDE 111103-38 -24 38.1 1-1/2'' 37.7-39.3 49.7±0.5 55.9 Max 150 2175 600 8700 500 2.300 10-45 DPF3T-24
JDE 111103-45 -30 45.0 1-4/5'' 44.5-45.5 56.4±0.5 59.8 Max 12 174 48 696 500 1.500 10-45 DPF3T-24
JDE 111103-51 -32 50.8 2'' 50.4-52.0 62.4±0.5 68.6 Max 10 145 40 580 630 2.650 10-45 DPF3T-32
Marking / Layline (Printing, Ink, Embossed)
A GB/T 3683 3SW flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black
