GB/T 10544 R12 Wire Spiral Fluid Hose

  • An icon shows the hose of DME&JDE can withstand maximum 120 °C temperature.
Applicable Specs:
  • SAE 100R12 / EN 856 R12
  • TS 10548
  • ISO 1307
  • ISO 3862 R12
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of mining equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of forestry equipment of hydraulic hose application.
American Technology Equipment American Technology Equipment
Product Series:
  • DME&Jdme-jde-shield-flex.png

    New-Standard

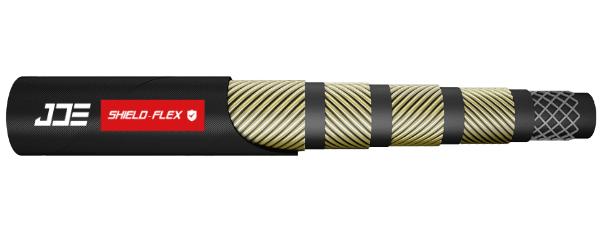

An GB/T 10544 R12 fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 4 layers of steel wire spiral
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF4T
    • Insert: DPX4XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved

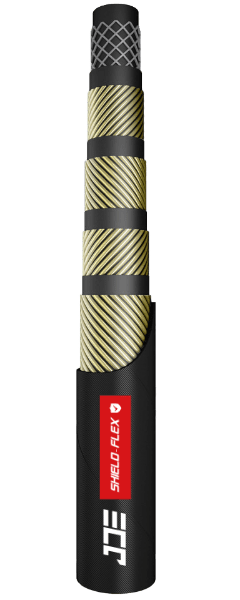

An GB/T 10544 R12 fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    172–276 Bar / 2494–4002 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 500,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +120 °C (intermittent 125 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. Braid O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
JDE 311112-10 -06 9.5 3/8" 9.3-10.1 16.6-17.8 19.5-21.0 280 4060 1120 16240 125 0.700 20/40 DPF4T-06
JDE 311112-12 -08 12.7 1/2" 12.3-13.5 19.9-21.5 23.0-24.6 280 4060 1120 16240 180 0.800 20/40 DPF4T-08
JDE 311112-16 -10 16.0 5/8" 15.5-16.7 23.8-25.4 26.6-28.8 280 4060 1120 16240 200 0.975 20/40 DPF4T-10
JDE 311112-19 -12 19.0 3/4" 18.6-19.8 26.9-28.4 29.9-31.5 280 4060 1120 16240 240 1.450 20/40 DPF4T-12
JDE 311112-25 -16 25.4 1" 25.0-26.4 34.1-35.7 36.8-39.2 280 4060 1120 16240 300 2.050 20/40 DPF4T-16
JDE 311112-32 -20 31.8 1-1/4" 31.4-33.0 42.7-45.1 45.4-48.6 210 3045 840 12180 420 3.060 20/40 DPF4T-20
JDE 311112-38 -24 38.1 1-1/2" 37.7-39.3 49.2-51.6 51.9-55.0 175 2538 700 10150 500 3.650 20/40 DPF4T-24
JDE 311112-51 -32 50.8 2" 50.4-52.0 62.5-64.8 65.1-68.3 175 2538 700 10150 630 4.850 20/40 DPF4T-32
Marking / Layline (Printing, Ink, Embossed)
A GB/T 10544 R12 flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black

Certificate
