New-Standard

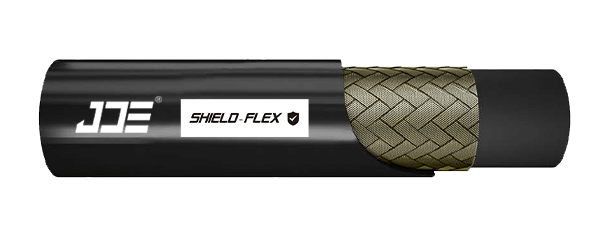

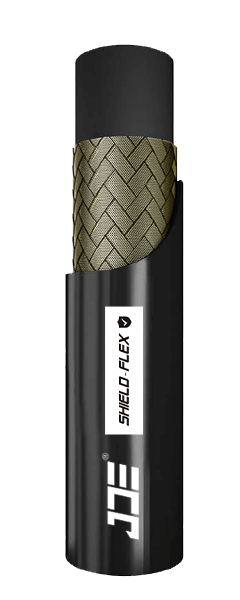

Synthetic rubber, extruded whole without joints, of uniform thickness
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
25 Bar / 362.5 PSI
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DME Code |
| JDE 421105-10 | -06 | 9.5 | 3/8'' | 9.3-10.1 | - | 18.8 MAX. | 25 | 362.5 | 100 | 1450 | 90 | 0.390 | 50/100 | LPG-06 |
| JDE 421105-12 | -08 | 12.7 | 1/2'' | 12.3-13.5 | - | 22.7 MAX. | 25 | 362.5 | 100 | 1450 | 100 | 0.472 | 50/100 | LPG-08 |
| JDE 421105-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | - | 25.9 MAX. | 25 | 362.5 | 100 | 1450 | 125 | 0.581 | 50/100 | LPG-10 |
| JDE 421105-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | - | 31.0 MAX. | 25 | 362.5 | 100 | 1450 | 160 | 0.690 | 50/100 | LPG-12 |
| JDE 421105-25 | -16 | 25.4 | 1'' | 25.0-26.4 | - | 38.0 MAX. | 25 | 362.5 | 100 | 1450 | 200 | 0.830 | 50/100 | LPG-16 |
| JDE 421105-32 | -20 | 31.8 | 1-1/4'' | 31.4-33.0 | - | 45.0 MAX. | 25 | 362.5 | 100 | 1450 | 250 | 1.325 | 20/40 | LPG-20 |
| JDE 421105-38 | -24 | 38.1 | 1-1/2'' | 37.7-39.3 | - | 52.1 MAX. | 25 | 362.5 | 100 | 1450 | 320 | 1.500 | 20/40 | LPG-24 |
| JDE 421105-51 | -32 | 50.8 | 2'' | 50.4-52.0 | - | 66.0 MAX. | 25 | 362.5 | 100 | 1450 | 400 | 1.875 | 20/40 | LPG-32 |
Cover Type: Wrapped, Smooth
Packing Type: Roll, Pallet, Reel
Outward Appearance: Black
ISO 9001
ISO 14001
ISO 45001
