Steam Hose 1SW/B Wire Braided Fluid Hose

  • An icon shows the hydraulic hose can withstand +210 °C temperature.
Applicable Specs:
  • BS 5342 Type-2
  • EXCEEDS IS 10655
Applications:
An icon of hot water. An icon of steam. An icon of water.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE KONIG FLEX Series Products

    -40 °C / +210 °C

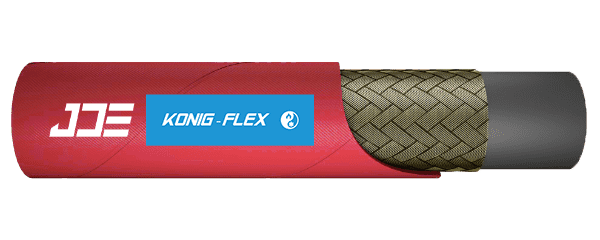

An Steam Hose 1SW fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Black colour, EPDM rubber resistant to saturated steam

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 1 layer of steel wire braid.
  • An icon of flexible hoses outer tubes
    Covering:

    Red colour,EPDM resistant to ozone and weather

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPF2T
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
An Steam Hose 1SW fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    20 Bar / 290 PSI

  • An icon of flexible hoses working temperature
    Temperature
    • High Temperature steam lines up to +210 °C (intermittent +230 °C)
    • High Temperature transport liquid, -40 °C to +135 °C (intermittent 155 °C)
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Water, Heated steam
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
KON 713101-10 -06 9.5 3/8'' 9.3-10.1 14.5-15.7 18.1 MAX. 20 290 80 1160 130 0.390 50/100 DPF2T-06
KON 713101-12 -08 12.7 1/2'' 12.3-13.5 17.5-19.1 21.4 MAX. 20 290 80 1160 180 0.472 50/100 DPF2T-08
KON 713101-16 -10 16.0 5/8'' 15.5-16.7 20.6-22.2 24.5 MAX. 20 290 80 1160 200 0.581 50/100 DPF2T-10
KON 713101-19 -12 19.0 3/4'' 18.6-19.8 24.6-26.2 28.5 MAX. 20 290 80 1160 240 0.690 50/100 DPF2T-12
KON 713101-25 -16 25.4 1'' 25.0-26.4 32.5-34.1 36.6 MAX. 20 290 80 1160 300 0.830 50/100 DPF2T-16
KON 713101-32 -20 31.8 1-1/4'' 31.4-33.0 39.3-41.7 44.8 MAX. 20 290 80 1160 420 1.325 20/40 DPF2T-20
KON 713101-38 -24 38.1 1-1/2'' 37.7-39.3 45.6-48.0 52.1 MAX. 20 290 80 1160 500 1.500 20/40 DPF2T-24
KON 713101-51 -32 50.8 2'' 50.4-52.0 58.7-61.7 65.5 MAX. 20 290 80 1160 630 1.875 20/40 DPF2T-32
Marking / Layline (Printing, Ink, Embossed)
A Steam Hose 1SW flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped/Smooth

Packing Type: Roll, Pallet, Reel

Outward Appearance: Red
