Super Impulse ISO 18752 4CS Exceed SAE R12 Hydraulic Hose

  • An icon shows the hose of DME&JDE can withstand maximum 125 °C temperature.
Applicable Specs:
  • SAE 100R12 / EN 856 R12
  • TS 10548
  • ISO 1307
  • ISO 3862 R12
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of mining equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of forestry equipment of hydraulic hose application.
American Technology Equipment American Technology Equipment
Product Series:
  • DME&JDE EXACT FLEX Series Products

    Super Impulse & Pressure

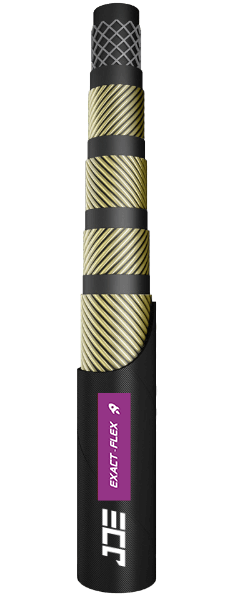

An Super Impulse Super R12 fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 4 layers of steel wire spiral
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF4T
    • Insert: DPX4XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
An Super Impulse Super R12 fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    420–450 Bar / 6090–6525 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 1,000,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +120 °C (intermittent 125 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
EXA 911114-10 -6 9.5 3/8" 10.0±0.3 17.6±0.5 18.6±0.5 450 6525 1800 26100 180 0.73 40 DPFR13-06
EXA 911114-12 -8 12.7 1/2" 12.8±0.3 20.3±0.5 21.3±0.5 420 6090 1680 24360 230 0.90 40 DPFR13-08
EXA 911114-16 -10 16.0 5/8" 16.0±0.3 24.1±0.5 25.1±0.5 420 6090 1680 24360 250 1.05 40 DPFR13-10
Marking / Layline (Printing, Ink, Embossed)
A Super Impulse Super R12 flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black
