SAE J2064 A/C Hose Type C 7 Layer Winding

Applicable Specs:
  • SAE J2064
  • SAE J3062
  • QC/T664
Applications:
An icon of car of hydraulic hose application. An icon of truck of hydraulic hose application.
Italy Technology Equipment Italy Technology Equipment
Product Series:
  • DME&JDE SHIELD FLEX Series Products

    New-Standard

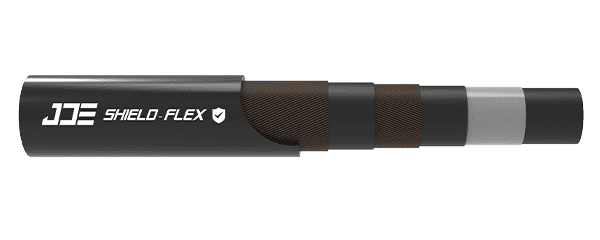

A SAE J2064 Type C air condition hose in 7-layer structure.
  • An icon of air condition hose tubes.
    Tube:

    EPDM/CSM/IIR

  • An icon of flexible hoses reinforcement
    Barrier:

    PA/NYLON

  • An icon of flexible hoses outer tubes
    Friction:

    EPDM/CSM/IIR

  • An icon of flexible hoses outer tubes
    Reinforcement:

    Winding PET/PVA

  • An icon of flexible hoses outer tubes
    Cover:

    EPDM

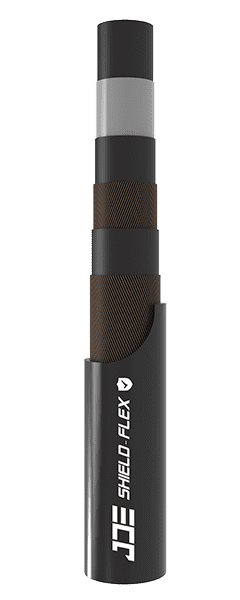

A SAE J2064 Type C air condition hose in 7-layer structure.
  • An icon of flexible hoses fittings
    Fittings:

    DPFR134a-XX (X: Can choose)

  • An icon of flexible hoses working pressure
    Working Pressure:

    15–35 Bar / 200–500 PSI

  • An icon of flexible hoses working temperature
    Temperature

    -40 °C to +135 °C

  • An icon of flexible hoses recommend fluid
    Media

    refrigerant

    • R134a
    • R404a
    • R1234yf
Specification
Part Number Hose Size I.D. O.D. W.T W.D Operating Pressure Burst Pressure Bend Radius Permeability Ferrule
- Inch Spec mm mm mm mm bar psi bar psi mm kg/m3/year DME Code
JDE 321413-08 C 5/16" 8.2 × 19.0 8.2±0.2 19.0±0.3 5.5 0.4 35 500 210 3000 55.0 1.9 DPFR134a-05
JDE 321413-10 C 13/32" 10.5 × 23.0 10.5±0.2 23.0±0.3 6.2 0.4 35 500 210 3000 65.0 1.9 DPFR134a-06
JDE 321413-13 AC 1/2" A 13.0 × 25.4 13.0±0.2 25.4±0.3 6.2 0.4 35 500 220 3200 75.0 1.9 DPFR134a-08
JDE 321413-13 BC 1/2" B 13.0 × 23.0 13.0±0.2 23.0±0.3 5.0 0.4 35 500 220 3200 70.0 1.9 DPFR134a-08
JDE 321413-16 C 5/8" 16.0 × 28.6 16.0±0.2 28.6±0.3 6.1 0.4 15 200 180 2600 85.0 1.9 DPFR134a-10
Marking / Layline (Printing, Ink, Embossed)
A SAE J2064 Type C 7 layer air condition hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Smooth/Wrapped

Packing Type: Roll, Pallet

Outward Appearance: Black
